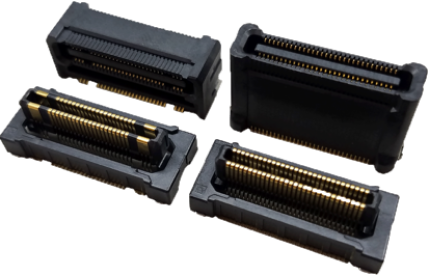

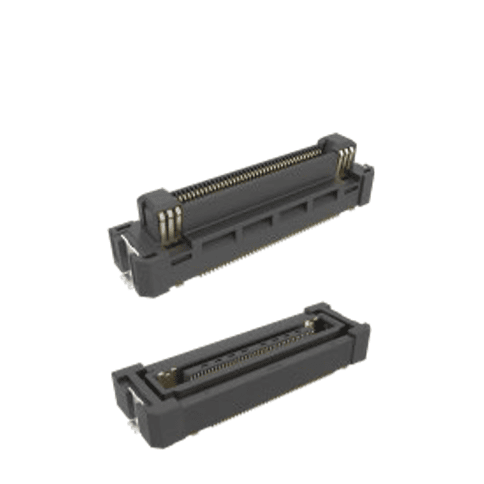

| Product: | Board to Board Connector |
| Manufacturer: | Horustech |
| Features: | 1. Floating design |
| 2. Automotive grade | |
| 3. Applications: smart cockpit, domain control, etc. |
Contact
Specification
| Product Family | FloatCombo Series HRS-B04P/B06P/B07P Plug HRS-B04R Rec |
|
| Pitch | 0.5mm | |
| Mate Height | 18~30 mm | |
| Position (pin count) | SH15: 100p | |
| SH20: 20/100p | ||
| SH30: 80/100/120p | ||
| Max Rating | Amp | Signal 0.5A/pin |
| Power 5A*4pin | ||
| Voltage | 50V (AC/DC) | |
| Floating Direction | X,Y±0.8mm; Z±0.6mm | |
| Operating Temperature | -55℃～ +125℃ | |
| Transmission | PCIe Gen4 16Gbps | |
| Rate | ||
| Configurations | Parallel, SMT+PIP | |
| Standard | USCAR-2 T3V2 | |
Horustech Electronics is a professional connector distributor and manufacturer, possessing expertise in designing and manufacturing connectors for automotive electronics. If you have any needs related to board-to-board connectors, please feel free to contact us.
