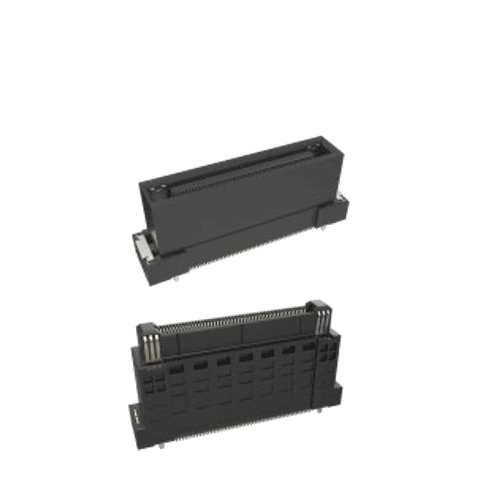

| Product: | Board to Board Connector |
| Manufacturer: | Horustech |
| Features: | 1. Floating design |
| 2. Automotive grade | |
| 3. Applications: smart cockpit, domain control, etc. |
Contact
Specification
|
Product Family
|
HRS-B406 Plug/HRS-B407 Rec | |
| Pitch | 0.8 mm | |
| Mate Height | 11.9 mm | |
| Position (pin count) | 60,90p | |
| Max Rating | Amp | 0.5A/pin |
| Voltage | 50V (AC/DC) | |
| Floating Direction | X,Y,Z ±0.5mm | |
| Operating Temperature | -40℃～ +105℃ | |
| Transmission | 2.5 Gbps | |
| Rate | ||
| Configurations | Vertical, SMT | |
| Standard | USCAR-2 T3V1 | |
| Applications | Smart cockpit, domain control, etc. | |
Horustech Electronics is a professional connector distributor and manufacturer, possessing expertise in designing and manufacturing connectors for automotive electronics. If you have any needs related to board-to-board connectors, please feel free to contact us.
