| 產品名稱: | 搖頭開關 |
| 製造商: | Nidec Copal |
| 產品特色: | 1. 雙觸點夾機構，可靠性高。 |
| 2. 超小型撥動開關，用於高密度安裝。 | |
| 3. 鍍金觸點。 | |
| 4. 端子引腳間距：2.54 mm。 | |
| 5. 獨立制動機構確保輕便的操作感。 | |
| 6. UL認可（不包括ATE-J系列）塑料蓋/搖桿） |
Contact
| 規格 | |
| 包裝方式: | Tray |
| 安裝類型: | 通孔、直角、垂直 |
| 工作溫度: | -20℃～85℃ |
| 額定電流: | 最大額定:50mA 最小額定:1μA |
| 額定電壓: | 最大額定:AC・DC60V 0.4VA AC、DC 最小額定:AC・DC20mV |
| 尺寸 mm (長*寬*高): |
5X9.5X8 |
| 備註 | 若有任何疑問或需其它規格，歡迎您來電03-4266335 |
| 電器特性 | |
| 初始接觸電阻: | 50mΩ 以下 (AC200μ V 1.5mA) |
| 介電強度: | AC250V 1分間 |
| 絕緣阻抗: | 500MΩ以上 (DC500V) |
| 電器壽命: | 最大額定:10,000週期 0.4VA以下 50,000週期（D.E. 類型） 0.4VA以下30,000週期（F.G.H. 類型） |
| 機械壽命: | D.E. 類型:50,000 週期 F.G.H. 類型:30,000 週期 |
| 型號一覽表 | |||
| 型號 | 電路配置 | 端接樣式 | 開關特性 |
| ATE1D-2M3-10-Z | SPDT | PC Straight | ON-ON |
| ATE2D-2M3-10-Z | DPDT | PC Straight | ON-ON |
| ATE1D-5M3-10-Z | SPDT | 0.2R/A Mounting height : 3.1mm | ON-ON |
| ☆ATE2D-5M3-10-Z | DPDT | 0.2R/A Mounting height : 3.1mm | ON-ON |
| ATE1D-6M3-10-Z | SPDT | 0.3R/A Mounting height : 3.1mm | ON-ON |
| ATE2D-6M3-10-Z | DPDT | 0.3R/A Mounting height : 3.1mm | ON-ON |
| ATE1D-2F3-10-Z | SPDT Flat toggle | PC Straight | ON-ON |
| ☆ATE2D-2F3-10-Z | DPDT Flat toggle | PC Straight terminal rows 2.54mm | ON-ON |
| ☆ATE2D-6F3-10-Z | DPDT Flat toggle | 0.3R/A Mounting height : 3.1mm | ON-ON |
| ☆ATE1D-2J3-10-Z | SPDT Plastic cap・Rocker type | PC Straight | ON-ON |
| ATE1E-2M3-10-Z | SPDT | PC Straight | ON-OFF-ON |
| ☆ATE2E-2M3-10-Z | DPDT | PC Straight | ON-OFF-ON |
| ☆ATE1E-5M3-10-Z | SPDT | 0.2R/A Mounting height : 3.1mm | ON-OFF-ON |
| ATE1E-6M3-10-Z | SPDT | 0.3R/A Mounting height : 3.1mm | ON-OFF-ON |
| ATE1E-2F3-10-Z |
SPDT Flat toggle | PC Straight | ON-OFF-ON |
| ☆ATE2E-2M3-10-Z | DPDT | PC Straight | ON-OFF-ON |
| ☆ATE1E-5M3-10-Z | SPDT | 0.2R/A Mounting height : 3.1mm | ON-OFF-ON |
| ATE1E-6M3-10-Z | SPDT | 0.3R/A Mounting height : 3.1mm | ON-OFF-ON |
| ATE1E-2F3-10-Z | SPDT Flat toggle | PC Straight | ON-OFF-ON |
| ★ATE1E-2J3-10-Z | SPDT Plastic cap・Rocker type | PC Straight | ON-OFF-ON |
| ATE1G-2M3-10-Z | SPDT | PC Straight | (ON)-OFF-(ON) |
| ☆ATE2G-2M3-10-Z | DPDT | PC Straight | (ON)-OFF-(ON) |
| ☆ATE1G-5M3-10-Z | SPDT | 0.2R/A Mounting height : 3.1mm | (ON)-OFF-(ON) |
| ☆ATE2G-5M3-10-Z | DPDT | 0.2R/A Mounting height : 3.1mm | (ON)-OFF-(ON) |
| ☆ATE1G-6M3-10-Z | SPDT | 0.3R/A Mounting height : 3.1mm | (ON)-OFF-(ON) |
| ☆ATE2G-2F3-10-Z | DPDT Flat toggle | PC Straight terminal rows 2.54mm | (ON)-OFF-(ON) |
| ★ATE1G-5F3-10-Z | SPDT Flat toggle | 0.2R/A Mounting height : 3.1mm | (ON)-OFF-(ON) |
| ☆ATE1G-6F3-10-Z | SPDT Flat toggle | 0.3R/A Mounting height : 3.1mm | (ON)-OFF-(ON) |
| ☆ATE1H-2M3-10-Z | SPDT | PC Straight | ON-OFF-(ON) |
| ★ATE1H-5M3-10-Z | SPDT | 0.2R/A Mounting height : 3.1mm | ON-OFF-(ON) |
| ☆ATE1H-6M3-10-Z | SPDT | 0.3R/A Mounting height : 3.1mm | ON-OFF-(ON) |
| ★ATE1H-5F3-10-Z |
SPDT Flat toggle | 0.2R/A Mounting height : 3.1mm | ON-OFF-(ON) |

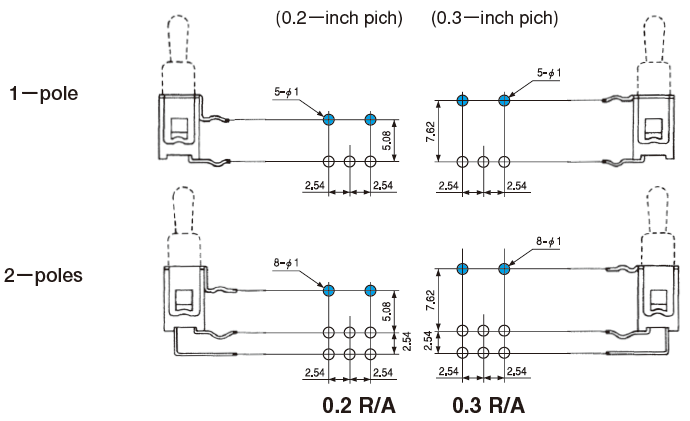

| 直角端子 |
| 端子排之間的空間有兩個尺寸：0.2英寸（5.08mm）和0.3英寸（7.62mm）。 [Example] 0.2-inch pitch: ATE1D-5M3-10-Z 0.3-inch pitch: ATE1D-6M3-10-Z |

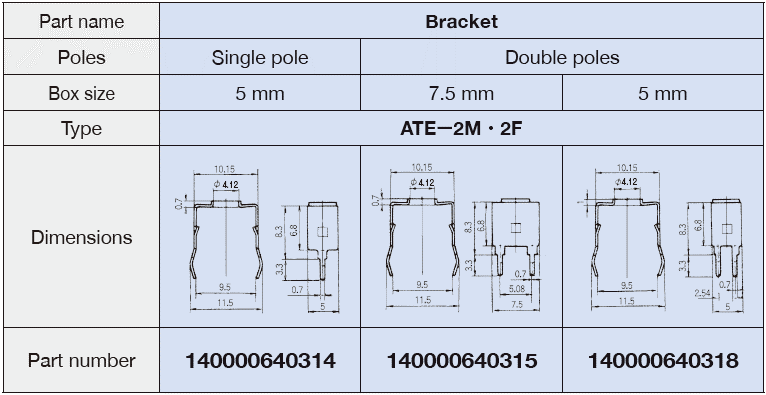

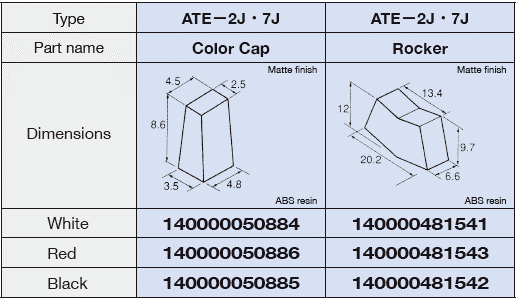

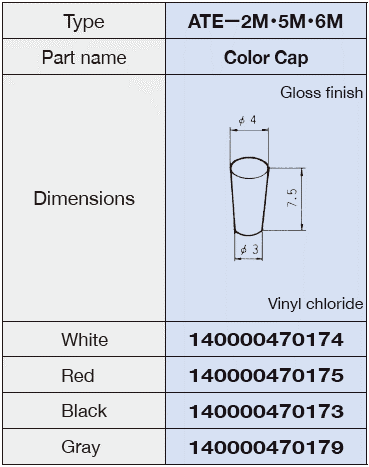

| 可選配件 |

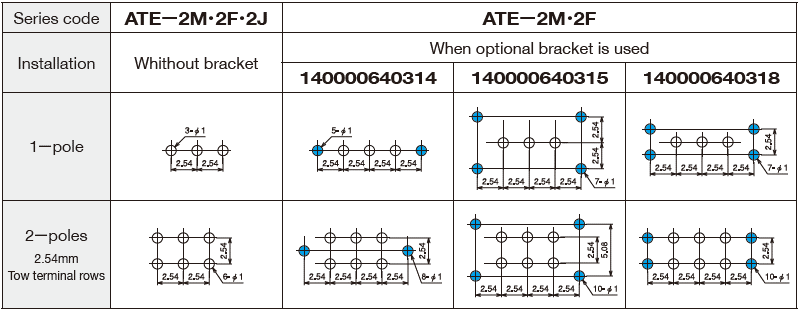

| 印刷電路板鑽孔的尺寸 |
| (1) PC terminal |
 |

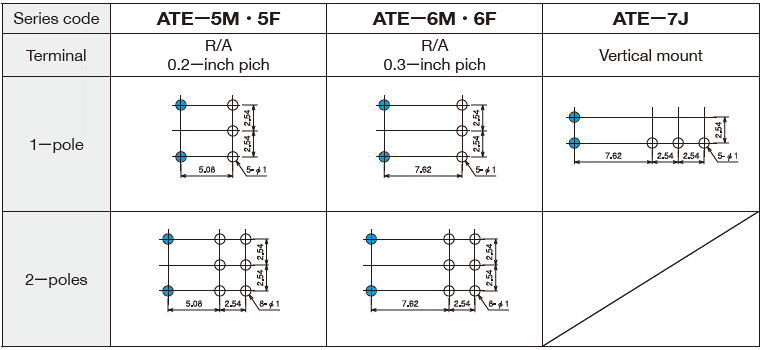

| (2) Right Angle terminal・Vertical Mount terminal |
 |

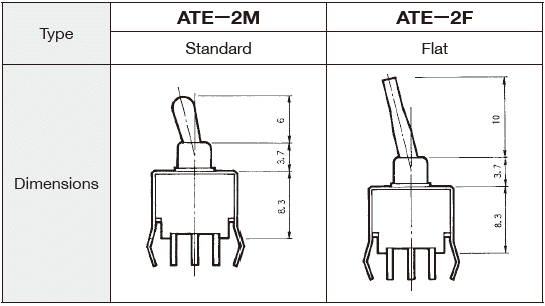

| 支架安裝尺寸 |
 |
