| 產品名稱: | 電源轉接器 |
| 製造商: | Moxa |
| 產品特色: | 1. 100 至 240 VAC 電源輸入 |
| 2. -40 至 75°C 操作溫度範圍（-T 型號） | |

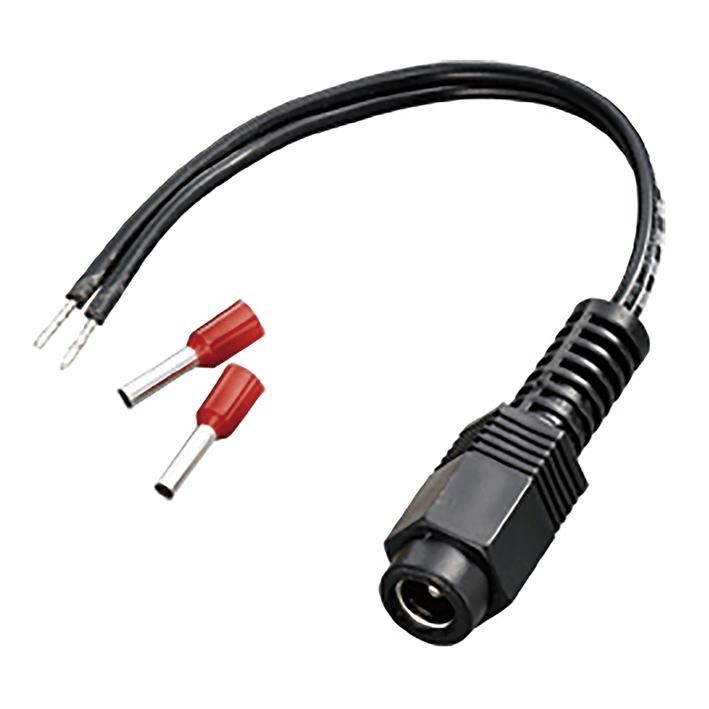

| ※ 提醒您：此商品務必搭配 【Moxa CBL-PJTB-10 電源線】為一組 |
Contact
簡介
Moxa 電源轉接器系列為 Moxa 產品提供可靠的電源。Moxa 提供一應俱全的電源轉接器，可滿足大多數工業控制系統對空間和電源輸入/輸出的要求。
規格
| PWR-12150-USJP-SA-T | ||
|---|---|---|
| Input Power Parameters | Voltage Range |
100 to 240 VAC (50 to 60 Hz) |
| Power Parameters | Input Plug Type |
US/JP |
| Output Power Rating | 1.5 A @ 12 VDC | |
| Output Plug Type | Connector Type: L-Type 5.5/2.1/7.5 | |
| Physical Characteristics | Dimensions | 32 x 70.3 x 88 mm (1.26 x 2.77 x 3.46 in) |
| Weight |
200 g (0.44 lb) | |
| Cord Length | 1500±100 mm (59.06±3.94 in) | |
| Environmental Limits | Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 75°C (-40 to 167°F) | |
| Standards and Certifications | Safety | FCC/UL/PSE |
| Warranty | Warranty Period | 1 years |
| Details | See www.moxa.com/tw/warranty |
可供選擇的機型
|
|
PWR-12150-UK-SA-T
|

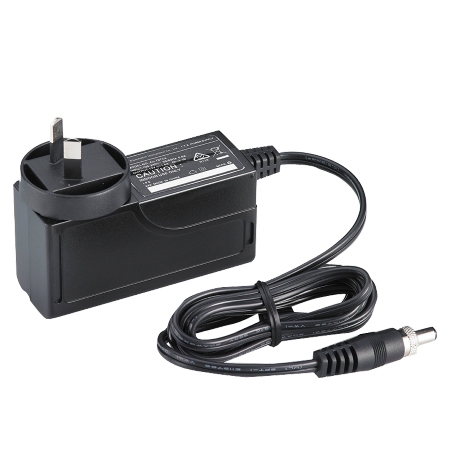

 PWR-12150-AU-SA-T
|
|
|---|---|---|---|
| Barrel-plug Type | Locking | Locking | Locking |
| Input-plug Type | US/JP | UK | AU |
| Output Rating | 1.5 A @ 12 VDC | 1.5 A @ 12 VDC | 1.5 A @ 12 VDC |
| Operating Temp. |
-40 to 75°C | -40 to 75°C | -40 to 75°C |
PWR-12150-CN-SA-T
|

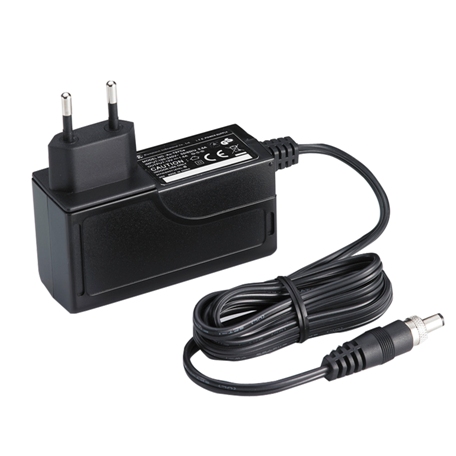

PWR-12150-EU-SA-T
|
 PWR-12050-CN-S1
|
|
| Barrel-plug Type | Locking | Locking | Locking |
| Input-plug Type | CN | EU | CN |
| Output Rating | 1.5 A @ 12 VDC | 1.5 A @ 12 VDC | 0.5 A @ 12 VDC |
| Operating Temp. |
-40 to 75°C | -40 to 75°C | 0 to 40°C |
|
PWR-12050-AU-S1
|
|
||
| Barrel-plug Type | Locking | ||
| Input-plug Type | AU | ||
| Output Rating | 0.5 A @ 12 VDC | ||
| Operating Temp. |
0 to 40°C |
