Diotec 雙極性電晶體

產品名稱:	Bipolar Transistors
製造商:	Diotec
產品特色:	1. Control and signal processing
	2. Compliant to RoHS, REACH, Conflict Minerals
	3. Suffix -Q: AEC-Q101 compliant Suffix -AQ: in AEC-Q101 qualification

Contact

Product List
點我查看產品列表

	Type	Package	Collector Emitter Voltage	DC Collector Current	Polarity	Power Dissipation	Junction Temperature	DC Current Gain			Collector Saturation Voltage			Gain Bandwidth Product
	Type	Package	VCEO[V]	IC[mA]	pol[]	Ptot[W]	Tjmax[°C]	hfe[]	VCE[V]	IC[mA]	VCEsat[mV]	IC[mA]	IB[mA]	VCE[V]	f[MHz]
BFS20	SMD	SOT-23	20	25	NPN	0.200	150	85	10	7				10	100
2N3904	Wire-lead	TO-92	40	200	NPN	0.625	150	100	1	10	300	50	5	20	100
2N3906	Wire-lead	TO-92	40	200	PNP	0.625	150	100	1	10	400	50	5	20	100
2N4401	Wire-lead	TO-92	40	600	NPN	0.250	150	100	1	150	750	500	50	10	100
2N4403	Wire-lead	TO-92	40	600	PNP	0.625	150	100	2	150	750	500	50	10	100
2N5401	Wire-lead	TO-92	150	600	PNP	0.625	150	60	5	10	500	50	5	5	50
2N5551	Wire-lead	TO-92	160	600	NPN	0.625	150	80	5	10	200	50	5	10	100
BC546A	Wire-lead	TO-92	65	100	NPN	0.500	150	120	5	100	600	100	5	5	100
BC546B	Wire-lead	TO-92	65	100	NPN	0.500	150	200	5	100	600	100	5	5	100
BC546C	Wire-lead	TO-92	65	100	NPN	0.500	150	400	5	100	600	100	5	5	100
BC547A	Wire-lead	TO-92	45	100	NPN	0.500	150	120	5	100	600	100	5	5	100
BC547B	Wire-lead	TO-92	45	100	NPN	0.500	150	200	5	100	600	100	5	5	100
BC547C	Wire-lead	TO-92	45	100	NPN	0.500	150	400	5	100	600	100	5	5	100
BC548A	Wire-lead	TO-92	30	100	NPN	0.500	150	120	5	100	600	100	5	5	100
BC548B	Wire-lead	TO-92	30	100	NPN	0.500	150	200	5	100	600	100	5	5	100
BC548C	Wire-lead	TO-92	30	100	NPN	0.500	150	400	5	100	600	100	5	5	100
BC549A	Wire-lead	TO-92	30	100	NPN	0.500	150	110	5	2	600	100	5	5	100
BC549B	Wire-lead	TO-92	30	100	NPN	0.500	150	200	5	100	600	100	5	5	100
BC549C	Wire-lead	TO-92	30	100	NPN	0.500	150	400	5	100	600	100	5	5	100
BC556A	Wire-lead	TO-92	65	100	PNP	0.500	150	120	5	100	250	100	5	5	100
BC556B	Wire-lead	TO-92	65	100	PNP	0.500	150	200	5	100	250	100	5	5	100
BC556C	Wire-lead	TO-92	65	100	PNP	0.500	150	400	5	100	250	100	5	5	100
BC557A	Wire-lead	TO-92	45	100	PNP	0.500	150	120	5	100	250	100	5	5	100
BC557B	Wire-lead	TO-92	45	100	PNP	0.500	150	200	5	100	250	100	5	5	100
BC557C	Wire-lead	TO-92	45	100	PNP	0.500	150	400	5	100	250	100	5	5	100
BC558A	Wire-lead	TO-92	30	100	PNP	0.500	150	120	5	100	250	100	5	5	100
BC558B	Wire-lead	TO-92	30	100	PNP	0.500	150	200	5	100	250	100	5	5	100
BC558C	Wire-lead	TO-92	30	100	PNP	0.500	150	400	5	100	250	100	5	5	100
BC559A	Wire-lead	TO-92	30	100	PNP	0.500	150	120	5	100	250	100	5	5	100
BC559B	Wire-lead	TO-92	30	100	PNP	0.500	150	200	5	100	250	100	5	5	100
BC559C	Wire-lead	TO-92	30	100	PNP	0.500	150	400	5	100	250	100	5	5	100

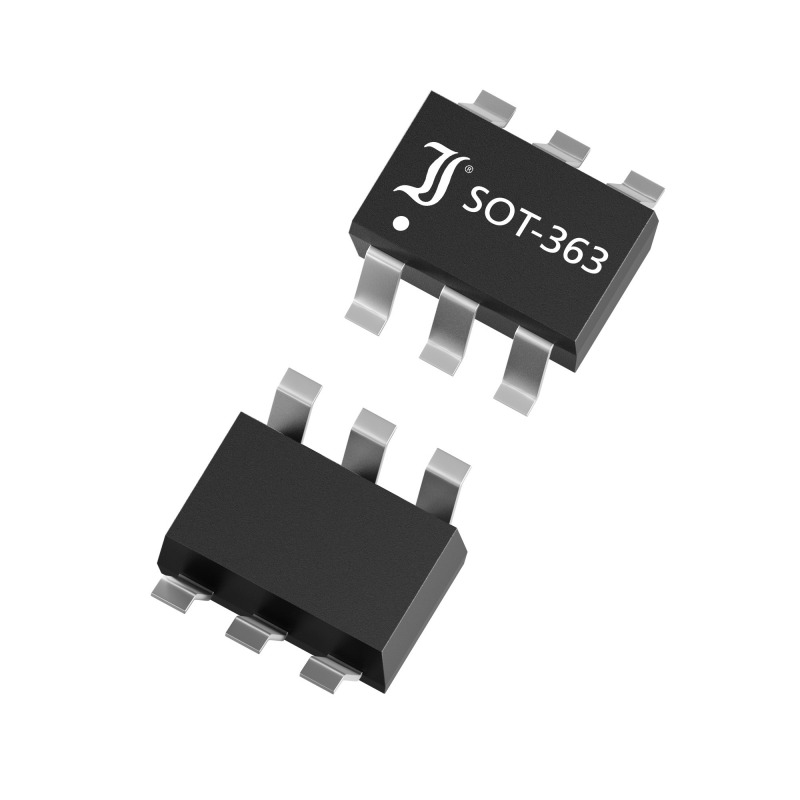

BC672S	SMD	SOT-363	18	50	NPN	0.150	150	150	10	10	500	20	4	10	200
BC846A	SMD	SOT-23	65	100	NPN	0.250	150	180	5	2	600	100	5	5	100
BC846B	SMD	SOT-23	65	100	NPN	0.250	150	290	5	2	600	100	5	5	100
BC846C	SMD	SOT-23	65	100	NPN	0.250	150	520	5	2	600	100	5	5	100
BC846S	SMD	SOT-363	65	100	NPN	0.250	150	270	5	2	650	100	5	5	100
BC847A	SMD	SOT-23	45	100	NPN	0.250	150	180	5	2	600	100	5	5	100
BC847B	SMD	SOT-23	45	100	NPN	0.250	150	290	5	2	600	100	5	5	100
BC847C	SMD	SOT-23	45	100	NPN	0.250	150	520	5	2	600	100	5	5	100
BC847S	SMD	SOT-363	45	100	NPN	0.250	150	270	5	2	650	100	5	5	100
BC848A	SMD	SOT-23	30	100	NPN	0.250	150	180	5	2	600	100	5	5	100
BC848B	SMD	SOT-23	30	100	NPN	0.250	150	290	5	2	600	100	5	5	100
BC848C	SMD	SOT-23	30	100	NPN	0.250	150	520	5	2	600	100	5	5	100
BC849A	SMD	SOT-23	30	100	NPN	0.250	150	180	5	2	600	100	5	5	100
BC849B	SMD	SOT-23	30	100	NPN	0.250	150	290	5	2	600	100	5	5	100
BC849C	SMD	SOT-23	30	100	NPN	0.250	150	520	5	2	600	100	5	5	100
BC850A	SMD	SOT-23	45	100	NPN	0.250	150	180	5	2	600	100	5	5	100
BC850B	SMD	SOT-23	45	100	NPN	0.250	150	290	5	2	600	100	5	5	100
BC850C	SMD	SOT-23	45	100	NPN	0.250	150	520	5	2	600	100	5	5	100
BC856A	SMD	SOT-23	65	100	PNP	0.250	150	180	5	2	650	100	5	5	100
BC856B	SMD	SOT-23	65	100	PNP	0.250	150	290	5	2	650	100	5	5	100
BC856C	SMD	SOT-23	65	100	PNP	0.250	150	520	5	2	650	100	5	5	100
BC856S	SMD	SOT-363	65	100	PNP	0.310	150	350	5	2	600	100	5	5	100
BC857A	SMD	SOT-23	45	100	PNP	0.250	150	180	5	2	650	100	5	5	100
BC857B	SMD	SOT-23	45	100	PNP	0.250	150	290	5	2	650	100	5	5	100
BC857C	SMD	SOT-23	45	100	PNP	0.250	150	520	5	2	650	100	5	5	100
BC857S	SMD	SOT-363	45	100	PNP	0.310	150	350	5	2	600	100	5	5	100
BC858A	SMD	SOT-23	30	100	PNP	0.250	150	180	5	2	650	100	5	5	100
BC858B	SMD	SOT-23	30	100	PNP	0.250	150	290	5	2	650	100	5	5	100
BC858C	SMD	SOT-23	30	100	PNP	0.250	150	520	5	2	650	100	5	5	100
BC859A	SMD	SOT-23	30	100	PNP	0.250	150	180	5	2	650	100	5	5	100
BC859B	SMD	SOT-23	30	100	PNP	0.250	150	290	5	2	650	100	5	5	100
BC859C	SMD	SOT-23	30	100	PNP	0.250	150	520	5	2	650	100	5	5	100
BC860B	SMD	SOT-23	45	100	PNP	0.250	150	290	5	2	650	100	5	5	100
BC860C	SMD	SOT-23	45	100	PNP	0.250	150	520	5	2	650	100	5	5	100
BCW66F	SMD	SOT-23	45	600	NPN	0.300	150	160	1	100	700	500	50	5	100
MPSA06	Wire-lead	TO-92	80	500	NPN	0.625	150	100	1	10	250	100	10	2	100
MPSA42	Wire-lead	TO-92	300	500	NPN	0.625	150	40	10	10	500	20	2	20	100
MPSA44	Wire-lead	TO-92	400	300	NPN	0.625	150	200	10	10	750	50	5
MPSA56	Wire-lead	TO-92	80	500	PNP	0.625	150	100	1	10	250	100	10	1	100
MPSA92	Wire-lead	TO-92	300	500	PNP	0.625	150	40	10	10	500	20	2	20	100
PZTA42	SMD	SOT-223	300	500	NPN	1.500	150	40	10	30	500	20	2	20	100
PZTA94	SMD	SOT-223	-400	500	PNP	1.500	150	160	10	10	500	50	5	20	100
2N2222A	Wire-lead	TO-92	40	600	NPN	0.625	150	100	10	150	300	150	15	20	100
2N2907A	Wire-lead	TO-92	60	600	PNP	0.625	150	200	10	150	300	150	15	20	100
2SC2983	SMD	TO-252AA/D-PAK	160	1500	NPN	15.000	150	150	5	100	1500	500	50	10
2SC3851	Wire-lead	ITO-220AB	60	4000	NPN	25.000	150	40	4	1	500	2000	200	12
BC846AW	SMD	SOT-323	65	100	NPN	0.200	150	180	5	2	600	100	5	5	100
BC846BW	SMD	SOT-323	65	100	NPN	0.200	150	290	5	2	600	100	5	5	100
BC846CW	SMD	SOT-323	65	100	NPN	0.200	150	520	5	2	600	100	5	5	100
BC847AW	SMD	SOT-323	45	100	NPN	0.200	150	180	5	2	600	100	5	5	100
BC847BP	SMD	DFN1006-3	45	100	NPN	0.150	150	325	5	2	600	100	5	5	1
BC847BW	SMD	SOT-323	45	100	NPN	0.200	150	290	5	2	600	100	5	5	100
BC847CW	SMD	SOT-323	45	100	NPN	0.200	150	520	5	2	600	100	5	5	100
BC847PN	SMD	SOT-363	45	100	NPN+PNP	0.200	150	300	1	10	300	50	5	20	100
BC848AW	SMD	SOT-323	30	100	NPN	0.200	150	180	5	2	600	100	5	5	100
BC848BW	SMD	SOT-323	30	100	NPN	0.200	150	290	5	2	600	100	5	5	100
BC848CW	SMD	SOT-323	30	100	NPN	0.200	150	520	5	2	600	100	5	5	100
BC849BW	SMD	SOT-323	30	100	NPN	0.200	150	290	5	2	600	100	5	5	100
BC849CW	SMD	SOT-323	30	100	NPN	0.200	150	520	5	2	600	100	5	5	100
BC856AW	SMD	SOT-323	65	100	PNP	0.200	150	180	5	2	650	100	5	5	100
BC856BW	SMD	SOT-323	65	100	PNP	0.200	150	290	5	2	650	100	5	5	100
BC856CW	SMD	SOT-323	65	100	PNP	0.200	150	520	5	2	650	100	5	5	100
BC857AW	SMD	SOT-323	45	100	PNP	0.200	150	180	5	2	650	100	5	5	100
BC857BW	SMD	SOT-323	45	100	PNP	0.200	150	290	5	2	650	100	5	5	100
BC857CW	SMD	SOT-323	45	100	PNP	0.200	150	520	5	2	650	100	5	5	100
BC858AW	SMD	SOT-323	30	100	PNP	0.200	150	180	5	2	650	100	5	5	100
BC858BW	SMD	SOT-323	30	100	PNP	0.200	150	290	5	2	650	100	5	5	100
BC858CW	SMD	SOT-323	30	100	PNP	0.200	150	520	5	2	650	100	5	5	100
BC859AW	SMD	SOT-323	30	100	PNP	0.200	150	180	5	2	650	100	5	5	100
BC859BW	SMD	SOT-323	30	100	PNP	0.200	150	290	5	2	650	100	5	5	100
BC859CW	SMD	SOT-323	30	100	PNP	0.200	150	520	5	2	650	100	5	5	100
BCP53-6	SMD	SOT-223	80	1000	PNP	2.000	150	40	2	150	500	500	50	5	100
BCP55-6	SMD	SOT-223	60	1000	NPN	2.000	150	40	2	150	500	500	50	10	100
BCP56-6	SMD	SOT-223	80	1000	NPN	2.000	150	40	2	150	500	500	50	10	100
DI13001	SMD	SOT-23	700	250	NPN	0.800	150	25	5	50	600	100	20	0	0
DI2579N	SMD	SOT-223	700	1000	NPN	1.250	150	20	5	350	1000	350	50	0	0
MMBTA06	SMD	SOT-23	80	500	NPN	0.250	150	100	1	100	250	100	10	2	100
MMBTA42	SMD	SOT-23	300	500	NPN	0.250	150	200	10	10	500	20	2	10	100
MMBTA44	SMD	SOT-23	400	500	NPN	0.250	150	80	10	10	200	10	1	20
MMBTA56	SMD	SOT-23	-80	-500	PNP	0.250	150	100	-1	-100	250	-100	-10	-1	100
MMBTA92	SMD	SOT-23	300	500	PNP	0.250	150	40	10	10	500	20	2	10	100
MMBTA94	SMD	SOT-23	400	300	PNP	0.200	150	40	10	10	750	50	5
2SA1012R	SMD	TO-252AA/D-PAK	-50	-5000	PNP	5.000	150	150	-1	-1000	400	-3	-150	-4	1
2SAR544R	SMD	SOT-23	80	2500	PNP	1.000	150	250	3	100	400	1000	50	10	100
2SCR544R	SMD	SOT-23	80	2500	NPN	1.000	150	250	3	100	300	1000	50	10	100
BC327-16	Wire-lead	TO-92	45	800	PNP	0.625	150	160	1	100	700	500	50	5	50
BC327-25	Wire-lead	TO-92	45	800	PNP	0.625	150	250	1	100	700	500	50	5	50
BC327-40	Wire-lead	TO-92	45	800	PNP	0.625	150	400	1	100	700	500	50	5	50
BC328-16	Wire-lead	TO-92	25	800	PNP	0.625	150	160	1	100	700	500	50	5	50
BC328-25	Wire-lead	TO-92	25	800	PNP	0.625	150	250	1	100	700	500	50	5	50
BC328-40	Wire-lead	TO-92	25	800	PNP	0.625	150	400	1	100	700	500	50	5	50
BC337-16	Wire-lead	TO-92	45	800	NPN	0.625	150	160	1	100	700	500	50	5	50
BC337-25	Wire-lead	TO-92	45	800	NPN	0.625	150	250	1	100	700	500	50	5	50
BC337-40	Wire-lead	TO-92	45	800	NPN	0.625	150	400	1	100	700	500	50	5	50
BC338-16	Wire-lead	TO-92	25	800	NPN	0.625	150	160	1	100	700	500	50	5	50
BC338-25	Wire-lead	TO-92	25	800	NPN	0.625	150	250	1	100	700	500	50	5	50
BC338-40	Wire-lead	TO-92	25	800	NPN	0.625	150	400	1	100	700	500	50	5	50
BC546ABK	Wire-lead	TO-92BK	65	100	NPN	0.500	150	110	5	100	600	100	5	5	100
BC546BBK	Wire-lead	TO-92BK	65	100	NPN	0.500	150	200	5	100	600	100	5	5	100
BC547ABK	Wire-lead	TO-92BK	45	100	NPN	0.500	150	120	5	100	600	100	5	5	100
BC547BBK	Wire-lead	TO-92BK	45	100	NPN	0.500	150	200	5	100	600	100	5	5	100
BC547CBK	Wire-lead	TO-92BK	45	100	NPN	0.500	150	400	5	100	600	100	5	5	100
BC548BBK	Wire-lead	TO-92BK	30	100	NPN	0.500	150	200	5	100	600	100	5	5	100
BC548CBK	Wire-lead	TO-92BK	30	100	NPN	0.500	150	400	5	100	600	100	5	5	100
BC549BBK	Wire-lead	TO-92BK	30	100	NPN	0.500	150	200	5	100	600	100	5	5	100
BC549CBK	Wire-lead	TO-92BK	30	100	NPN	0.500	150	400	5	100	600	100	5	5	100
BC556ABK	Wire-lead	TO-92BK	65	100	PNP	0.500	150	120	5	100	250	100	5	5	100
BC556BBK	Wire-lead	TO-92BK	65	100	PNP	0.500	150	200	5	100	250	100	5	5	100
BC557BBK	Wire-lead	TO-92BK	45	100	PNP	0.500	150	200	5	100	250	100	5	5	100
BC557CBK	Wire-lead	TO-92BK	45	100	PNP	0.500	150	330	5	2	650	100	5	5
BC807-16	SMD	SOT-23	45	800	PNP	0.310	150	160	1	100	700	500	50	5	50
BC807-25	SMD	SOT-23	45	800	PNP	0.310	150	250	1	100	700	500	50	5	50
BC807-40	SMD	SOT-23	45	800	PNP	0.310	150	400	1	100	700	500	50	5	50
BC808-16	SMD	SOT-23	25	800	PNP	0.310	150	160	1	100	700	500	50	5	50
BC808-25	SMD	SOT-23	25	800	PNP	0.310	150	250	1	100	700	500	50	5	50
BC808-40	SMD	SOT-23	25	800	PNP	0.310	150	400	1	100	700	500	50	5	50
BC817-16	SMD	SOT-23	45	800	NPN	0.310	150	160	1	100	700	500	50	5	50
BC817-25	SMD	SOT-23	45	800	NPN	0.310	150	250	1	100	700	500	50	5	50
BC817-40	SMD	SOT-23	45	800	NPN	0.310	150	400	1	100	700	500	50	5	50
BC817BPN	SMD	SOT-26	45	500	NPN+PNP	0.300	150	280	1	100	700	500	50	5	100
BC818-16	SMD	SOT-23	25	800	NPN	0.310	150	160	1	100	700	500	50	5	50
BC818-25	SMD	SOT-23	25	800	NPN	0.310	150	250	1	100	700	500	50	5	50
BC818-40	SMD	SOT-23	25	800	NPN	0.310	150	400	1	100	700	500	50	5	50
BC846A-Q	SMD	SOT-23	65	100	NPN	0.250	150	180	5	2	600	100	5	5	100
BC846B-C	SMD	SOT-23	65	100	NPN	0.200	150	290	5	2	600	100	5	5	100
BC846B-Q	SMD	SOT-23	65	100	NPN	0.250	150	290	5	2	600	100	5	5	100
BC846S-Q	SMD	SOT-363	65	100	NPN	0.250	150	270	5	2	650	100	5	5	100
BC847A-Q	SMD	SOT-23	45	100	NPN	0.250	150	180	5	2	600	100	5	5	100
BC847B-C	SMD	SOT-23	45	100	NPN	0.250	150	290	5	2	600	100	5	5	100
BC847B-Q	SMD	SOT-23	45	100	NPN	0.250	150	290	5	2	600	100	5	5	100
BC847C-C	SMD	SOT-23	45	100	NPN	0.250	150	520	5	2	600	100	5	5	100
BC847C-Q	SMD	SOT-23	45	100	NPN	0.250	150	520	5	2	600	100	5	5	100
BC848C-C	SMD	SOT-23	30	100	NPN	0.200	150	520	5	2	600	100	5	5	100
BC856A-Q	SMD	SOT-23	65	100	PNP	0.250	150	180	5	2	650	100	5	5	100
BC856C-Q	SMD	SOT-23	65	100	PNP	0.250	150	520	5	2	650	100	5	5	100
BC857B-C	SMD	SOT-23	45	100	PNP	0.200	150	290	5	2	500	100	5	5	100
BC857B-Q	SMD	SOT-23	45	100	PNP	0.250	150	290	5	2	650	100	5	5	100
BC857S-Q	SMD	SOT-363	45	100	PNP	0.310	150	350	5	2	600	100	5	5	100
BC858B-C	SMD	SOT-23	30	100	PNP	0.200	150	290	5	2	500	100	5	5	100
BCM846BS	SMD	SOT-363	65	100	NPN	0.250	150	270	5	2	650	100	5	5	100
BCM847BS	SMD	SOT-363	45	100	NPN	0.250	150	270	5	2	650	100	5	5	100
BCP51-10	SMD	SOT-223	45	1000	PNP	2.000	150	160	2	150	500	500	50	5	100
BCP53-10	SMD	SOT-223	80	1000	PNP	2.000	150	63	2	150	500	500	50	5	100
BCP53-16	SMD	SOT-223	80	1000	PNP	2.000	150	100	2	150	500	500	50	5	100
BCP55-10	SMD	SOT-223	60	1000	NPN	2.000	150	63	2	150	500	500	50	10	100
BCP55-16	SMD	SOT-223	60	1000	NPN	2.000	150	100	2	150	500	500	50	10	100
BCP56-10	SMD	SOT-223	80	1000	NPN	2.000	150	63	2	150	500	500	50	10	100
BCP56-16	SMD	SOT-223	80	1000	NPN	2.000	150	40	2	150	500	500	50	10	100
BCX53-16	SMD	SOT-89	80	1000	PNP	0.500	150	250	2	150	500	500	50	5	100
BCX56-10	SMD	SOT-89	80	1000	NPN	0.500	150	160	2	150	500	500	50	5	100
BCX56-16	SMD	SOT-89	80	1000	NPN	0.500	150	250	2	150	500	500	50	5	100
BDP50-16	SMD	SOT-223	60	3000	PNP	2.000	150	160	2	500	300	1000	100	5	100
MMBT2369	SMD	SOT-23	15	200	NPN	0.250	150	80	1	10	250	10	1
MMBT3904	SMD	SOT-23	40	200	NPN	0.350	150	300	1	10	300	50	5	20	100
MMBT3906	SMD	SOT-23	40	200	PNP	0.250	150	300	1	10	400	50	5	20	100
MMBT4401	SMD	SOT-23	40	600	NPN	0.250	150	300	1	150	750	500	50	10	100
MMBT4403	SMD	SOT-23	40	600	PNP	0.250	150	100	1	10	750	500	50	10	100
MMBT5401	SMD	SOT-23	150	600	PNP	0.250	150	200	5	10	500	50	5	10	100
MMBT5551	SMD	SOT-23	160	600	NPN	0.250	150	250	5	10	200	50	5	10	100
MMBTA44A	SMD	SOT-23	400	500	NPN	0.250	150	80	10	10	200	10	1	20
MMBTA94A	SMD	SOT-23	400	500	PNP	0.350	150	45	10	30	250	20	2	5
MMDT2227	SMD	SOT-363	60	600	NPN+PNP	0.200	150	300	10	150	0	150	15	20	100
MPSA06BK	Wire-lead	TO-92BK	80	500	NPN	0.625	150	100	1	10	250	100	10	1	100
MPSA42BK	Wire-lead	TO-92BK	300	500	NPN	0.625	150	40	10	10	500	20	2	20	100
MPSA44BK	Wire-lead	TO-92BK	400	300	NPN	0.625	150	200	10	10	750	50	5
MPSA56BK	Wire-lead	TO-92BK	80	500	PNP	0.625	150	100	1	10	250	100	10	1	100
MPSA92BK	Wire-lead	TO-92BK	300	500	PNP	0.625	150	40	10	10	500	20	2	20	100
PZTA42-Q	SMD	SOT-223	300	500	NPN	1.500	150	40	10	30	500	20	2	20	100
2SC2983-Q	SMD	TO-252AA/D-PAK	160	1500	NPN	15.000	150	250	5	100	500	500	50	10
BC807-16W	SMD	SOT-323	45	500	PNP	0.225		160	1	100	700	500	50	5	50
BC807-25W	SMD	SOT-323	45	500	PNP	0.225	150	250	1	100	700	500	50	5	50
BC807-40W	SMD	SOT-323	45	500	PNP	0.200	150	400	1	100	700	500	50	5	50
BC817-25W	SMD	SOT-323	45	500	NPN	0.200	150	250	1	100	700	500	50	5	50
BC817-40W	SMD	SOT-323	45	500	NPN	0.200	150	400	1	100	700	500	50	5	50
BC817K-16	SMD	SOT-23	45	500	NPN	0.500	150	180	1	100	700	500	50	5
BC817K-25	SMD	SOT-23	45	500	NPN	0.500	150	400	1	100	700	500	50	5	100
BC817K-40	SMD	SOT-23	45	500	NPN	0.500	150	630	1	100	700	500	50	5	100
BC846A-AQ	SMD	SOT-23	65	100	NPN	0.250	150	180	5	2	600	100	5	5	100
BC846B-AQ	SMD	SOT-23	65	100	NPN	0.250	150	290	5	2	600	100	5	5	100
BC846BR13	SMD	SOT-23	65	100	NPN	0.250	150	290	5	2	600	100	5	5	100
BC846BW-Q	SMD	SOT-323	65	100	NPN	0.200	150	290	5	2	600	100	5	5	100
BC846C-AQ	SMD	SOT-23	65	100	NPN	0.250	150	520	5	2	600	100	5	5	100
BC846CW-Q	SMD	SOT-323	65	100	NPN	0.200	150	520	5	2	600	100	5	5	100
BC847A-AQ	SMD	SOT-23	45	100	NPN	0.250	150	180	5	2	600	100	5	5	100
BC847B-AQ	SMD	SOT-23	45	100	NPN	0.250	150	290	5	2	600	100	5	5	100
BC847BR13	SMD	SOT-23	45	100	NPN	0.250	150	290	5	2	600	100	5	5	100
BC847BW-Q	SMD	SOT-323	45	100	NPN	0.200	150	290	5	2	600	100	5	5	100
BC847C-AQ	SMD	SOT-23	45	100	NPN	0.250	150	520	5	2	600	100	5	5	100
BC847PN-Q	SMD	SOT-363	45	100	NPN+PNP	0.250	150	280	5	2	650	100	5	10	10
BC847S-AQ	SMD	SOT-363	45	100	NPN	0.250	150	270	5	2	650	100	5	5	100
BC848A-AQ	SMD	SOT-23	30	100	NPN	0.250	150	180	5	2	600	100	5	5	100
BC848B-AQ	SMD	SOT-23	30	100	NPN	0.250	150	290	5	2	600	100	5	5	100
BC848C-AQ	SMD	SOT-23	30	100	NPN	0.250	150	520	5	2	600	100	5	5	100
BC849A-AQ	SMD	SOT-23	30	100	NPN	0.250	150	180	5	2	600	100	5	5	100
BC849B-AQ	SMD	SOT-23	30	100	NPN	0.250	150	290	5	2	600	100	5	5	100
BC849C-AQ	SMD	SOT-23	30	100	NPN	0.250	150	520	5	2	600	100	5	5	100
BC850A-AQ	SMD	SOT-23	45	100	NPN	0.250	150	180	5	2	600	100	5	5	100
BC850B-AQ	SMD	SOT-23	45	100	NPN	0.250	150	290	5	2	600	100	5	5	100
BC850C-AQ	SMD	SOT-23	45	100	NPN	0.250	150	520	5	2	600	100	5	5	100
BC856A-AQ	SMD	SOT-23	65	100	PNP	0.250	150	180	5	2	650	100	5	5	100
BC856B-AQ	SMD	SOT-23	65	100	PNP	0.250	150	290	5	2	650	100	5	5	100
BC856C-AQ	SMD	SOT-23	65	100	PNP	0.250	150	520	5	2	650	100	5	5	100
BC856S-AQ	SMD	SOT-363	65	100	PNP	0.310	150	350	5	2	600	100	5	5	100
BC857A-AQ	SMD	SOT-23	45	100	PNP	0.250	150	180	5	2	650	100	5	5	100
BC857B-AQ	SMD	SOT-23	45	100	PNP	0.250	150	290	5	2	650	100	5	5	100
BC857BR13	SMD	SOT-23	45	100	PNP	0.250	150	290	5	2	650	100	5	5	100
BC857BW-Q	SMD	SOT-323	45	100	PNP	0.200	150	290	5	2	650	100	5	5	100
BC857C-AQ	SMD	SOT-23	45	100	PNP	0.250	150	520	5	2	650	100	5	5	100
BC857S-AQ	SMD	SOT-363	45	100	PNP	0.310	150	350	5	2	600	100	5	5	100
BC858A-AQ	SMD	SOT-23	30	100	PNP	0.250	150	180	5	2	650	100	5	5	100
BC858B-AQ	SMD	SOT-23	30	100	PNP	0.250	150	290	5	2	650	100	5	5	100
BC858C-AQ	SMD	SOT-23	30	100	PNP	0.250	150	520	5	2	650	100	5	5	100
BC859A-AQ	SMD	SOT-23	30	100	PNP	0.250	150	180	5	2	650	100	5	5	100
BC859B-AQ	SMD	SOT-23	30	100	PNP	0.250	150	290	5	2	650	100	5	5	100
BC859C-AQ	SMD	SOT-23	30	100	PNP	0.250	150	520	5	2	650	100	5	5	100
MMBT2222A	SMD	SOT-23	40	600	NPN	0.250	150	375	10	10	1000	500	50	20	100
MMBT2907A	SMD	SOT-23	60	600	PNP	0.250	150	100	10	10	1600	500	50	20	100
MMBTA06-Q	SMD	SOT-23	80	500	NPN	0.250		100	1	100	250	100	10	2	100
2SC2983-AQ	SMD	TO-252AA/D-PAK	160	1500	NPN	15.000	150	250	5	100	500	500	50	10
2SD1918-AQ	SMD	TO-252AA/D-PAK	160	1500	NPN	15.000	150	250	5	100	500	500	50	10
BC327-25BK	Wire-lead	TO-92BK	45	800	PNP	0.625	150	250	1	100	700	500	50	5	50
BC327-40BK	Wire-lead	TO-92BK	45	800	PNP	0.625	150	400	1	100	700	500	50	5	50
BC337-16BK	Wire-lead	TO-92BK	45	800	NPN	0.625	150	160	1	100	700	500	50	5	50
BC337-25BK	Wire-lead	TO-92BK	45	800	NPN	0.625	150	250	1	100	700	500	50	5	50
BC337-40BK	Wire-lead	TO-92BK	45	800	NPN	0.625	150	400	1	100	700	500	50	5	50
BC807-16-Q	SMD	SOT-23	45	800	PNP	0.310	150	160	1	100	700	500	50	5	50
BC807-25-Q	SMD	SOT-23	45	800	PNP	0.310	150	250	1	100	700	500	50	5	50
BC807-40-Q	SMD	SOT-23	45	800	PNP	0.310	150	400	1	100	700	500	50	5	50
BC817-16-Q	SMD	SOT-23	45	800	NPN	0.310	150	160	1	100	700	500	50	5	50
BC817-25-Q	SMD	SOT-23	45	800	NPN	0.310	150	250	1	100	700	500	50	5	50
BC817-40-Q	SMD	SOT-23	45	800	NPN	0.310	150	400	1	100	700	500	50	5	50
BC817BPN-Q	SMD	SOT-26	45	500	NPN+PNP	0.300	150	280	1	100	700	500	50	5	100
BC846BW-AQ	SMD	SOT-323	65	100	NPN	0.200	150	290	5	2	600	100	5	5	100
BC846PN-AQ	SMD	SOT-363	65	100	NPN+PNP	0.250	150	280	5	2	650	100	5	10	10
BC847BW-AQ	SMD	SOT-323	45	100	NPN	0.200	150	290	5	2	600	100	5	5	100
BC847CW-AQ	SMD	SOT-323	45	100	NPN	0.200	150	520	5	2	600	100	5	5	100
BC847PN-AQ	SMD	SOT-363	45	100	NPN+PNP	0.250	150	280	5	2	650	100	5	10	10
BC856BW-AQ	SMD	SOT-323	65	100	PNP	0.200	150	290	5	2	600	100	5	5	100
BC857BW-AQ	SMD	SOT-323	45	100	PNP	0.200	150	290	5	2	650	100	5	5	100
BCP53-16-Q	SMD	SOT-223	80	1000	PNP	2.000	150	100	2	150	500	500	50	5	100
BCP56-16-Q	SMD	SOT-223	80	1000	NPN	2.000	150	40	2	150	500	500	50	10	100
BCX53-16-Q	SMD	SOT-89	80	1000	PNP	0.500	150	250	2	150	500	500	50	5	100
BCX56-16-Q	SMD	SOT-89	80	1000	NPN	0.500	150	250	2	150	500	500	50	5	100
BDP50-16-Q	SMD	SOT-223	60	3000	PNP	2.000	150	160	2	500	300	1000	100	5	100
MMBT3904-Q	SMD	SOT-23	40	200	NPN	0.350	150	300	1	10	300	50	5	20	100
MMBT3906-Q	SMD	SOT-23	40	200	PNP	0.250	150	300	1	10	400	50	5	20	100
MMBT4401-Q	SMD	SOT-23	40	600	NPN	0.250	150	300	1	150	750	500	50	10	100
MMBT5401-Q	SMD	SOT-23	150	600	PNP	0.250	150	200	5	10	500	50	5	10	100
MMBT5551-Q	SMD	SOT-23	160	600	NPN	0.250	150	250	5	10	200	50	5	10	100
MMBTA06-AQ	SMD	SOT-23	80	500	NPN	0.250	150	100	1	100	250	100	10	2	100
MMBTA42-AQ	SMD	SOT-23	300	500	NPN	0.250	150	200	10	10	500	20	2	10	100
MMBTA56-AQ	SMD	SOT-23	-80	-500	PNP	0.250	150	100	-1	-100	250	-100	-10	-1	100
MMBTA92-AQ	SMD	SOT-23	300	500	PNP	0.250	150	40	10	10	500	20	2	10	100
MMDT2227-Q	SMD	SOT-363	60	600	NPN+PNP	0.200	150	300	10	150	0	150	15	20	100
2SD1815SR-Q	SMD	TO-252AA/D-PAK	100	3000	NPN	20.000	150	210	5	500	400	1500	150	10
2SD1815TR-Q	SMD	TO-252AA/D-PAK	100	3000	NPN	20.000	150	300	5	500	400	1500	150	10
BC807-16-AQ	SMD	SOT-23	45	800	PNP	0.310	150	160	1	100	700	500	50	5	50
BC807-16R13	SMD	SOT-23	45	800	PNP	0.310	150	180	1	100	700	500	50	5	50
BC807-25-AQ	SMD	SOT-23	45	800	PNP	0.310	150	250	1	100	700	500	50	5	50
BC807-40-AQ	SMD	SOT-23	45	800	PNP	0.310	150	400	1	100	700	500	50	5	50
BC807-40R13	SMD	SOT-23	45	800	PNP	0.310	150	400	1	100	700	500	50	5	50
BC817-25-AQ	SMD	SOT-23	45	800	NPN	0.310	150	280	1	100	700	500	50	5	50
BC817-40-AQ	SMD	SOT-23	45	800	NPN	0.310	150	400	1	100	700	500	50	5	50
BC817-40R13	SMD	SOT-23	45	800	NPN	0.310	150	400	1	100	700	500	50	5	50
BCP55-16-AQ	SMD	SOT-223	60	1000	NPN	2.000	150	100	2	150	500	500	50	10	100
BCP56-16-AQ	SMD	SOT-223	80	1000	NPN	2.000	150	40	2	150	500	500	50	10	100
BCX53-16-AQ	SMD	SOT-89	80	1000	PNP	0.500	150	250	2	150	500	500	50	5	100
BCX53-16R13	SMD	SOT-89	80	1000	PNP	0.500	150	250	2	150	500	500	50	5	100
BCX56-16-AQ	SMD	SOT-89	80	1000	NPN	0.500	150	250	2	150	500	500	50	5	100
MMBT2222A-Q	SMD	SOT-23	40	600	NPN	0.250	150	375	10	10	1	500	50	20	100
MMBT2907A-Q	SMD	SOT-23	60	600	PNP	0.250	150	100	10	10	1600	500	50	20	100
MMBT3904-AQ	SMD	SOT-23	40	200	NPN	0.350	150	300	1	10	300	50	5	20	100
MMBT3906-AQ	SMD	SOT-23	40	200	PNP	0.250	150	300	1	10	400	50	5	20	100
MMBT4401-AQ	SMD	SOT-23	40	600	NPN	0.250	150	300	1	150	750	500	50	10	100
MMBT4403-AQ	SMD	SOT-23	40	600	PNP	0.250	150	100	1	10	750	500	50	10	100
MMBT5401-AQ	SMD	SOT-23	150	600	PNP	0.250	150	200	5	10	500	50	5	10	100
MMBT5551-AQ	SMD	SOT-23	160	600	NPN	0.250	150	250	5	10	200	50	5	10	100
2SD1815TR-AQ	SMD	TO-252AA/D-PAK	100	3000	NPN	20.000	150	300	5	500	400	1500	150	10
BC807-40W-AQ	SMD	SOT-323	45	500	PNP	0.200	150	400	1	100	700	500	50	5	50
BC817K-16-AQ	SMD	SOT-23	45	500	NPN	0.500	150	180	1	100	700	500	50	5
MMBT2222A-AQ	SMD	SOT-23	40	600	NPN	0.250	150	375	10	10	1	500	50	20	100
MMBT2907A-AQ	SMD	SOT-23	60	600	PNP	0.250	150	100	10	10	1600	500	50	20	100
