| Product: | Slide Switch |
| Manufacturer: | MinebeaMitsumi |
| Features: | 1. Small size (1-pole, 2-contacts : 6.8 x 2.0mm), small mounting area |
| 2. Slim slide switch (1.2mm in height when installed). | |
| 3. Suitable for SMT reflow soldering. | |
| 4. Horizontal knobs (1-pole, 2-contacts) and vertical knobs (1-pole, 2-contacts) are available. |
Contact
| Specifications | |
| Packaging method: | Tape&Reel |
| Installation type: | SMD |
| Operating temp: | -10℃ ~ +60℃ |
| Ampacity: | 0.3A |
| Rated voltage: | DC 4V |
| Size (mm) (L*W*H): |
2.0×6.8×1.2 2.0×8.1×1.2 |
| note | For further information, please contact:+886-3-4266335 |
Overall View

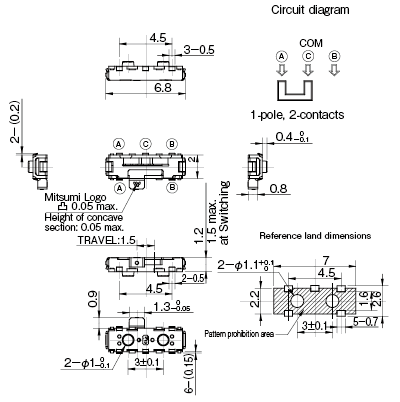

SSU-121ART

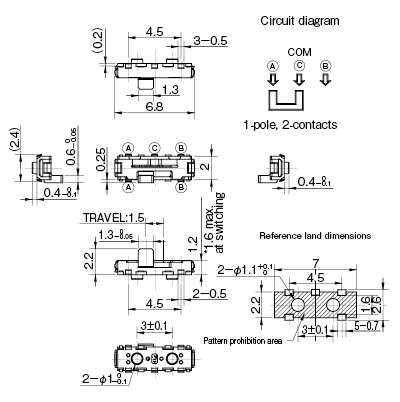

SSU-121BRT
