| Product: | Toggle switch |
| Manufacturer: | Nidec Copal |
| Features: | 1. Ultra-miniature toggle switch for high density mounting. |
| 2. Washable. | |
| 3. Terminal pin pitch: 2.54 mm. | |
| 4. Independent detent mechanism ensures light operational feel. | |
| 5. Clip contact mechanism for long-term contact reliability. | |
| 6. Gold-plated contacts. |
Contact
| Specifications | |
| Packaging method: | Tray |
| Installation type: | Through hole, right angle, vertical |
| Operating temp: | －40℃ ～ +85℃ |
| Ampacity: | Max. 0.4VA Min. 1μ A |
| Rated voltage: | Max. DC28V Min. DC20mV |
| Size (mm) (L*W*H): |
4.5X7X5.4 |
| note | For further information, please contact:+886-3-4266335 |
ELECTRICAL CHARACTERISTICS
| Rating: | Max. 28VDC 0.4VA max. Rating 1μ A 20mVDC |
|---|---|
| Initial contact resistance: | 100mΩ max.(1.5mA 200μVAC) |
| Dielectric strength: | 250VAC 1 minute |
| Insulation resistance: | 500MΩ min. (250VDC) |
| Electrical life: | 10,000 cycles at max. rating. 50,000 cycles at min. rating(D.E type) 30,000 cycles at min. rating(G.H type) |
| Mechanical life: | D.E type 50,000 cycles G.H type 30,000 cycles |
| Operating temperature range: | －40℃～＋85℃ |
| Storage temperature range: | －40℃～＋85℃ |
Soldering Specifications |
| (1) Manual Soldering Device：Soldering iron 350℃, Max.; 3 seconds, Max. |

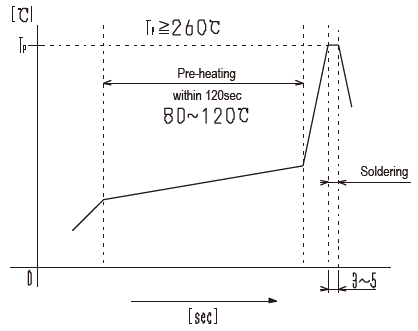

| (2) Auto Soldering Device：Jet wave type or dip type 260℃, Max.; 3 to 5 seconds (One time) Total dip time within 10 sec. ※Pre-heating should be done at temperatures ranging from 80℃ to 120℃ and within 120 sec. |
| (3) When soldering two or more terminals to the common land, use the solder resist to solder them independently. |
Flux Cleaning |
| (1) Solvent : Fluorine or Alcohol type. |
| (2) Cleaning after soldering should be done after the PC board is exposed to room temperature (30℃ or below) for 1 to 2 hours. |
| (3) Do not use ultrasonic cleaning. |
