| Product: | Rotary Switch |
| Manufacturer: | MinebeaMitsumi |
| Features: | 1. Small mount area.(11.1 10). |
| 2. Rotary encoder is 15 detents. | |
| 3. By the composite with a rotary encoder and slide switch, compound operation of three directions is possible. |
Contact
| Specifications | |
| Packaging method: | Tape&Reel |
| Installation type: | SMD |
| Operating temp: | -20℃ ~ +60℃ |
| Ampacity: | 10mA |
| Rated voltage: | DC 5V |
| Size (mm) (L*W*H , Φ): |
11.1×10×4.5 , Φ14.5 |
| note | For further information, please contact:+886-3-4266335 |
Type
| Type | No. of Detent | Rotational Torque | Pcs/Reel |
| SIQ-02FVS3 | 15 | 1~10mN･m | 500 |

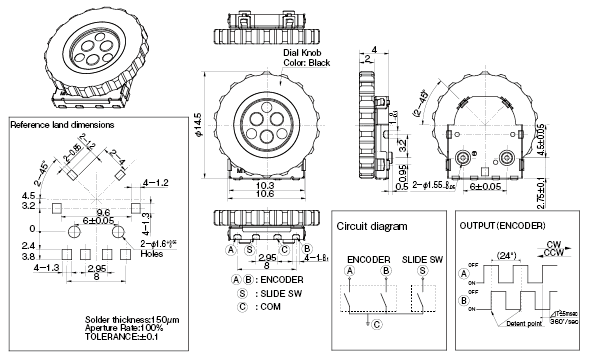

DIMENSIONS
