| Product: | Rotary switch |
| Manufacturer: | Nidec Copal |
| Features: | 1. Diallyl phthalate resin (UL94V-O) which has excellent resistance to arc and heat, and superb insulation quality is employed. |
| 2. The terminals are molded in to ensure the permanent seal structure that completely prevents flux entry through the terminals. | |
| 3. Adoption of the wiping mechanism for the contacting area to ensure contacting stability and reliability. | |
| 4. The variable stopper is provided to allow free selection of the desired number of positions (excluding MR4-2 type). |
Contact
| Specifications | |
| Packaging method: | Bag |
| Installation type: | Panel, through hole |
| Operating temp: | －20℃～ 85℃ |
| Ampacity: | 500mA Silver plated: 10mA Gold plated: 5mA |
| Rated voltage: | 500mA Silver plated: AC/DC 5V Gold plated: DC6V |
| Size (mm) (L*W*H): |
16X16X51,Φ16 |
| note | For further information, please contact:+886-3-4266335 |
ELECTRICAL CHARACTERISTICS |
|
| Initial contact resistance: | Silver plated: 10mΩ max.（1A 2～4VDC） Gold plated: 20mΩ max.（1.5mA 200μ VAC） |
| Dielectric strength: | 1,000VAC 1minute |
| Insulation resistance: | 100MΩ min. （ DC500V） |
| Electrical life: | 10,000 cycles |
MECHANICAL CHARACTERISTICS |
|
| Operating force: | 9.8N・cm max. |
| Stopper strength: | 19.6N・cm |
Part Numbering |
||||
| MR | 1- | 10 | G- | Z |
| Series code | Number of poles | Number of position | Contact plating | |
| 1：1 pole 2：2 poles 3：3 poles 4：4 poles |
10:10 position 5:5 position 3:3 position 2:2 position |
None：Silver plated G：Gold plated |
||

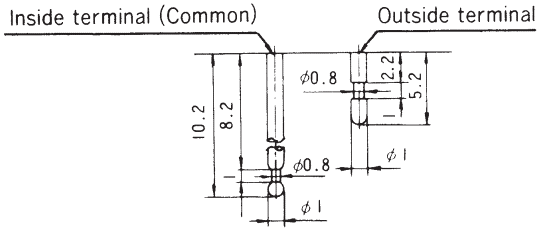

◆Terminal Styles
 terminal style.png)
