| Product: | RF slide switch |
| Manufacturer: | Nidec Copal |
| Features: | 1. Covering the DC ~ 1 GHz frequency spectrum |
| 2. Gold-plated contact provides excellent reliability |
Contact
| Specifications | |
| Packaging method: | Tray, Pack |
| Installation type: | Through hole |
| Operating temp: | -40 ~ 85 °C |
| Ampacity: | Non-switching: 100 mA Switching: 100 mA Minimum: 1μA |
| Rated voltage: | Non-switching: DC50 V Switching: DC12 V Minimum: DC20 mV |
| Size: | 10X6X8.5 13.8X6.5X8.5 |
| note | For further information, please contact:+886-3-4266335 |
Electrical characteristics
| Contact timing: | Non-shorting |
|---|---|
| Contact resistance: | 70 mΩ maximum |
| Insulation resistance: | 100 MΩ minimum (DC500 V) |
| Dielectric strength: | AC500 V, 60 s |
Mechanical characteristics
| No. of positions: | 2, 3 |
|---|---|
| Stroke: | 2 mm |

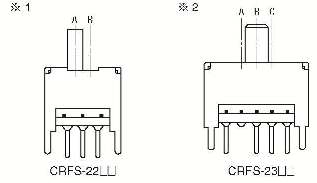

| Operating force: | CFRS-22 □□ ※1 A ↔ B : 2.5 ± 1.5 N {0.255 ± 0.153 kgf} CFRS-23 □□ ※2 A → B / C → B : 1.5 ± 1 N {0.153 ± 0.102 kgf} B → A / B → C : 2.5 ± 1.5 N {0.255 ± 0.153 kgf} |
| Stop strength: | 30 N {3.06 kgf} 15 s |
| Solderability: | 245 ± 3 °C 2 ~ 3 s |
| Soldering heat: | Flow : 260 ± 3 °C, 5 ~ 6 s, 2 times maximum Manual soldering : 380 ± 10 °C, 3 ~ 4 s |
High frequency characteristics |
|||||
| Part numbers | Isolation between terminals | Isolation between circuits | Insertion loss | VSWR | Impedance |
| CRFS-22 (770 MHz) |
28 dB min. | 30 dB min. | 0.15 dB max. | 1.2 max. | 75 Ω |
| CRFS-22 (1.0 GHz) |
26 dB min. | 28 dB min. | 0.23 dB max. | 1.3 max. | 75 Ω |
| CRFS-23 (770 MHz) |
28 dB min. | 31 dB min. | 0.13 dB max. | 1.3 max. | 75 Ω |
|
CRFS-23
(1.0 GHz) |
26 dB min.
|
29 dB min.
|
0.17 dB max.
|
1.3 max.
|
75 Ω
|
Environmental characteristics
| Vibration: | Amplitude 1.5 mm or Acceleration 98 m/s2, 10-500-10 Hz, 3 directions for 10 cycles each |
|---|---|
| Shock: | 490 m/s2, 11 ms, sinusoidal wave half cycle,6 directions for 3 times each |
| Load life: | Continuous load 10000 cycles, DC12 ± 0.5 V, 100 ± 10 mA |
| Humidity: | 40 °C, Relative humidity 90 ~ 95 %, 240 h, No load |
| High temp. exposure: | 85 °C, 96 h, No load |
| Low temp. exposure: | − 40 °C, 96 h, No load |
| Thermal shock: | − 40 (0.5 h) ~ 85 °C (0.5 h), 5 cycles |
