| Product: | Tact switch |
| Manufacturer: | MinebeaMitsumi |
| Features: | 1. Original terminal structure reduces the mounting area. |
| 2. High reliability thanks to the dustproof design. | |
| 3. Good feeling from the wider pressing range. |
Contact
| Specifications | |
| Packaging method: | Tape&Reel |
| Installation type: | SMD |
| Operating temp: | -40℃ ~ +60℃ |
| Ampacity: | 20mA |
| Rated voltage: | DC 15V |
| Size (mm) (L*W*H): |
3.7×3.6×0.35 |
| note | For further information, please contact:+886-3-4266335 |
Type List
| Type | Operating Force | Boss | Pcs/Reel |
| SOG-152ANT | 1.6N | Without | 10,000 |
| SOG-154ANT | 2.35N | Without | 10,000 |

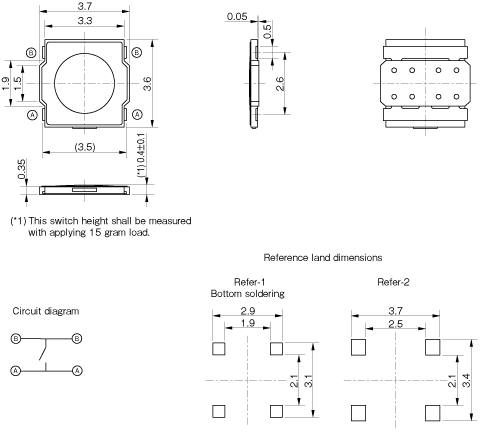

DIMENSIONS
