| Product: | Tact switch |
| Manufacturer: | MinebeaMitsumi |
| Features: | 1. IP68 water resistance and dust resistance. |
| 2. Sharp click feel and long operating life. |
Contact
| Specifications | |
| Packaging method: | Tape&Reel |
| Installation type: | SMD |
| Operating temp: | -40℃ ~ +85℃ |
| Ampacity: | 20mA |
| Rated voltage: | DC 15V |
| Size (mm) (L*W*H): |
2.8×1.9×0.53 2.8×1.9×.0.57 |
| note | For further information, please contact:+886-3-4266335 |
Type
| Type | Operating Force | Pcs/Reel |
| STU-057A23AX | 2.25N | 20,000 |

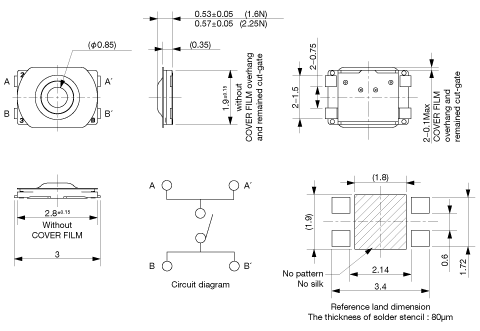

DIMENSIONS
