| Product: | Tact switch |
| Manufacturer: | MinebeaMitsumi |
| Features: | 1. Small size and mounting area (Width 2.0mm). |
| 2. Good feeling with the actuator. | |
| 3. IPX8 water resistance. |
Contact
| Specifications | |
| Packaging method: | Tape&Reel |
| Installation type: | SMD |
| Operating temp: | -40℃ ~ +85℃ |
| Ampacity: | 20mA |
| Rated voltage: | DC 15V |
| Size (mm) (L*W*H): |
3.0×2.0×0.6 |
| note | For further information, please contact:+886-3-4266335 |
Product List
| Type | Operating Force | Boss | Pcs/Reel |
| STO-060A16AB | 1.6N | Without | 20,000 |
| STO-060A24AB | 2.4N | Without | 20,000 |
| STO-060A33AC | 3.3N | Without | 20,000 |

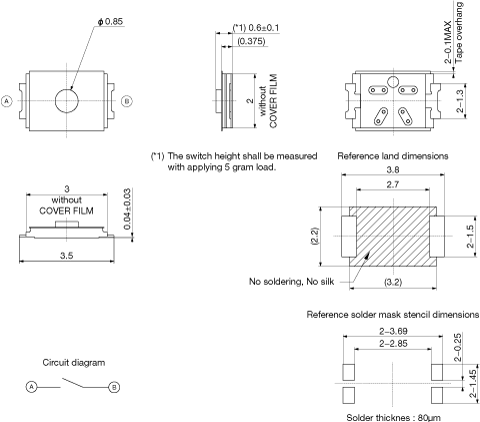

DIMENSIONS
