| Product: | Tact switch |
| Manufacturer: | MinebeaMitsumi |
| Features: | 1. Ultra small size. (2.5×1.6mm) |
| 2.Good feeling with the actuator. | |
| 3. High reliability with the small, thin, and dustproof design. | |
| 4. IPX8 water resistance. |
Contact
| Specifications | |
| Packaging method: | Tape&Reel |
| Installation type: | SMD |
| Operating temp: | -40℃ ~ +85℃ |
| Ampacity: | 20mA |
| Rated voltage: | DC 15V |
| Size (mm) (L*W*H): |
2.5×1.6×0.55 |
| note | For further information, please contact:+886-3-4266335 |
Product List
| Type | Operating Force | Boss | Pcs/Reel |
| STI-055A12AX | 1.2N | Without | 25,000 |
| STI-055A16AX | 1.6N | Without | 25,000 |
| STI-055A24AX | 2.4N | Without | 25,000 |

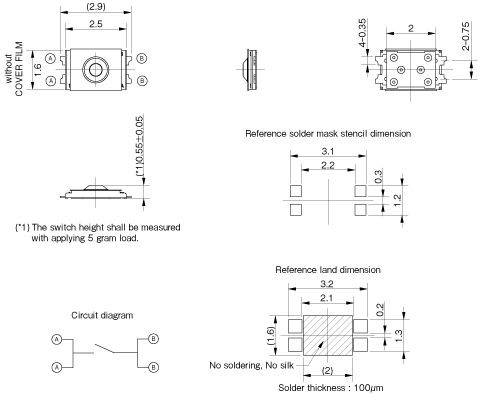

DIMENSIONS
