| Product: | Pressure transducer with amp. PA-758 |
| Manufacturer: | Nidec Copal |
| Features: | 1. Cable connector connection |
| 2. Buit-in temperature compensation function (0 ~ 50°C) | |
| 3. Voltage output mode |
Contact
| Specifications | |
| Packaging method: | Bag |
| Installation type: | Please refer to the product spec |
| Operating temp: | -20℃ ~ 70℃ |
| Ampacity: | Please refer to the product spec |
| Rated voltage: | Please refer to the product spec |
| Size : | Please see below |
※Unless otherwise specified, the specs are defined at an ambient temperature of 25 ± 5 °C and excitation voltage of 24 V DC, load resistance of 250 Ω.
| note | For further information, please contact:+886-3-4266335 |
| Pressure medium: | Corrosive gases/liquids compatible with SUS316L and SUS304 |
|---|---|
| Insulation resistance: | 100 MΩ minimum(500 V DC) |
| Dielectric strength: | 500 V AC, 60 s（Leakage current 1 mA maximum） |
| Sealed liquid: | Silicone oil |
| Pressure port: | R 1/8、R 1/4 |
| Net weight: | R2 : Approx. 50g |
| Drip-proof structure: | IP65 |
| Supply voltage: | 24 ± 10 %V DC(Including ripple percentage） |
Model Number Designation |
||||
| PA-758- | 102 | R | R2 - | 1 |
| Series name | Rated pressure range | Pressure reference | Fitting | Cable |
| 102G：0 ~ 100 kPa 352G：0 ~ 350 kPa 103G：0 ~ 1 MPa 353G：0 ~ 3.5 MPa 102V：0 ~ − 100 kPa 102R：− 100 ~ 100 kPa 302R：− 100 ~ 300 kPa 102A：0 ~ 100 kPa abs |
Gauge Gauge Gauge Gauge Gauge（Vacuum） Compound Compound Absolute |
R1：R 1/8 with M 5 female screw R2：R 1/4 with M 5 female screw |
Blank ：1.5m cable 1: Not attached |
|

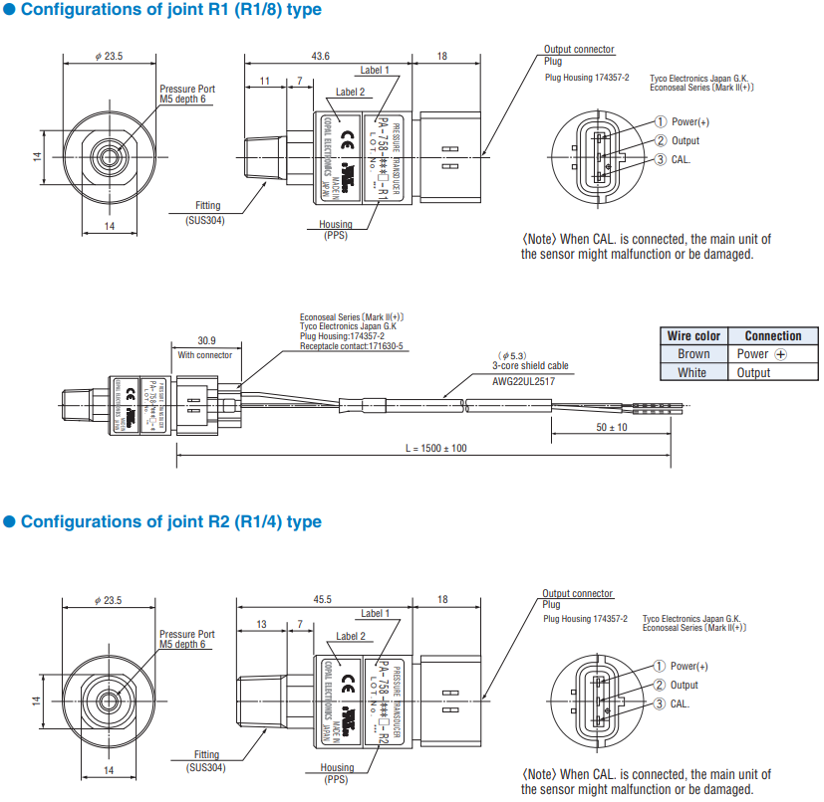

OUTLINE DIMENSIONS |
 |

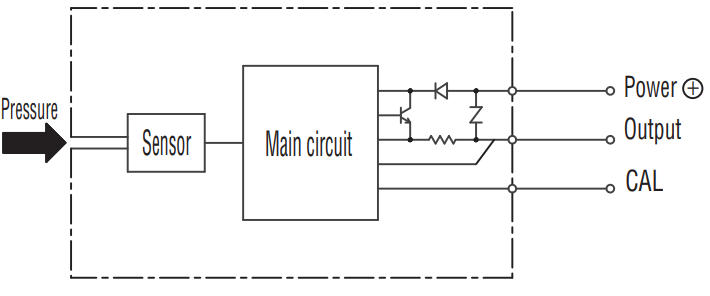

INTERNAL CIRCUIT DIAGRAM |
 |

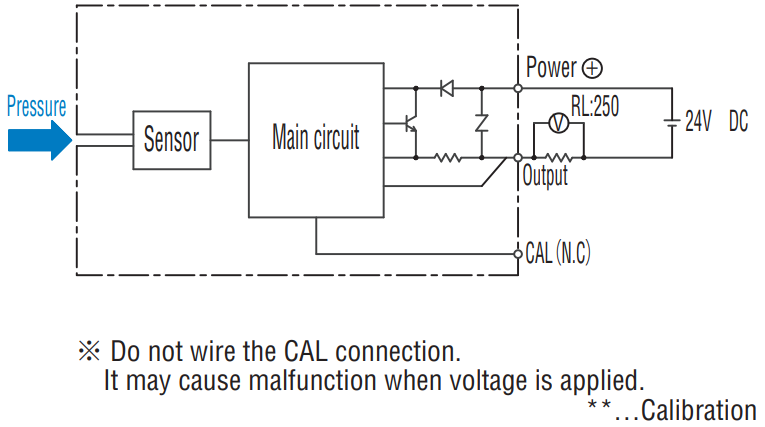

Recommended external schematics |
 |
