Pressure transducer with amp. PA-750

Pressure transducer with amp. PA-750

Product:

Pressure transducer with amp. PA-750

Manufacturer:

Nidec Copal

Features:

1. Cable connector connection

　

2. Voltage output mode

　

3. Buit-in temperature compensation function (0 ~ 50°C)
Contact
Specifications
Packaging method: Bag
Installation type: Please refer to the product spec
Operating temp: -20℃ ~ 80℃
Ampacity: Please refer to the product spec
Rated voltage: Please refer to the product spec
Size: Please see below
note For further information, please contact:+886-3-4266335

Pressure medium:

Corrosive gases/liquids compatible with SUS316L and SUS304

Insulation resistance:

100 MΩ minimum(500 V DC)

Dielectric strength:

500 V AC, 60 s（Leakage current 1 mA maximum）　

Sealed liquid:

Silicone oil

Pressure port:

R 1/8、R 1/4　

Net weight:

R2 : Approx. 50g

Drip-proof structure:

IP65

Supply voltage:

10.8 ~ 30V DC

Consumption current:

10 mA max.

Model Number Designation
PA-750- 102 R R2 - 1
Series name Rated pressure range Pressure reference Fitting Cable
102G：0 ~ 100 kPa
352G：0 ~ 350 kPa
103G：0 ~ 1 MPa
353G：0 ~ 3.5 MPa
102V：0 ~ − 100 kPa
102R：− 100 ~ 100 kPa
302R：− 100 ~ 300 kPa　
102A：0 ~ 100 kPa abs		 Gauge
Gauge
Gauge
Gauge
Gauge（Vacuum）
Compound
Compound
Absolute		 R1：R 1/8 with M 5 female screw
R2：R 1/4 with M 5 female screw






 Blank ：1.5m cable
1:Not attached

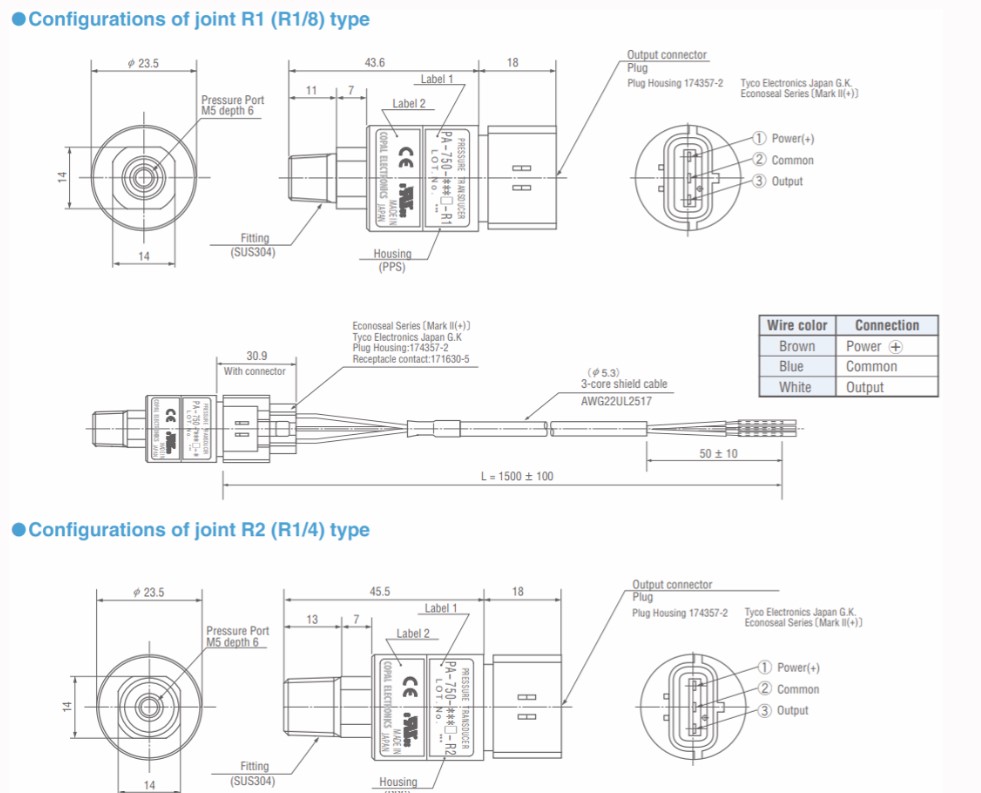

Outline Dimensions

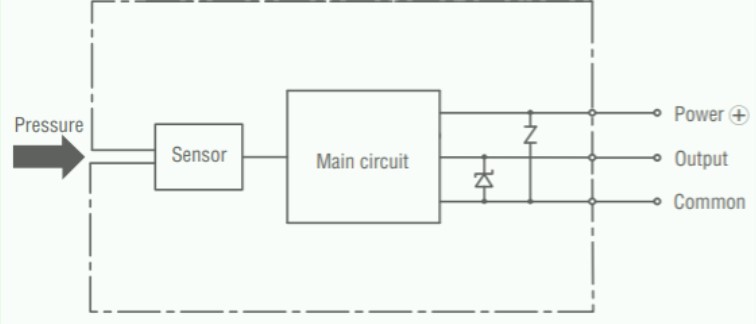

Internal Circuit Diagram
