Pressure transducer with amp. PA-500

Specifications
Packaging method:	Bag
Installation type:	Please refer to the product spec
Operating temp:	-20℃ ~ 80℃
Ampacity:	Please refer to the product spec
Rated voltage:	Please refer to the product spec
Size (mm) (L*W*H):	Please see the table below

※Unless otherwise specified, the specs are defined at an ambient temperature of 25±5 °C and excitation voltage of 12 V DC.

note	For further information, please contact:+886-3-4266335

Pressure reference:	Gauge、Gauge(Vacuum)
Pressure medium:	Non-corrosive gases / Non-corrosive liquids
Compensated temp. range:	0 ~ 50°C

Operating humidity:	35 ~ 85%RH（No condensation）
Storage temp.:	−20 ~ 80°C（Atmospheric pressure, humidity 65 %RH maximum）
Insulation resistance:	100 MΩ minimum (500 V DC)
Dielectric strength:	500 V DC, 60 s（Leakage current 1 mA maximum）
Pressure port:	R1/4(PT 1/4)、G 1/4 (PT 1/4)
Net weight:	Approx. 85g
Supply voltage:	12 ~ 24 ± 10 %
Ripple content:	10 % (P-P) maximum
Consumption current:	20 mA maximum

Model Number Designation
PA-500-	501	D	-06
Series name	Rated pressure range	Pressure reference	Thermal error
	101：0 ~ 9.81 kPa {0 ~ 0.1 kgf/cm2} 501：0 ~ 49.0 kPa {0 ~ 0.5 kgf/cm2} 102：0 ~ 98.1 kPa {0 ~ 1 kgf/cm2} 352：0 ~ 343 kPa {0 ~ 3.5 kgf/cm2} 502：0 ~ 490 kPa {0 ~ 5 kgf/cm2} 103：0 ~ 981 kPa {0 ~ 10 kgf/cm2}	G：Gauge V：Gauge (Vacuum)	06：± 0.06 % F.S./°C 10：± 0.1 % F.S./°C

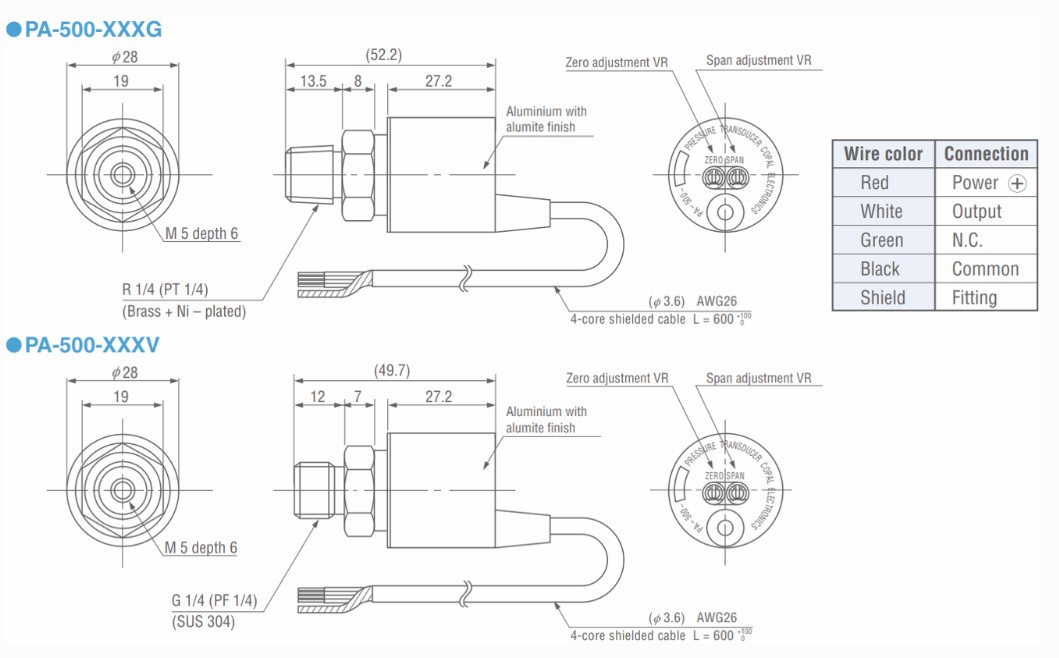

Outline Dimensions

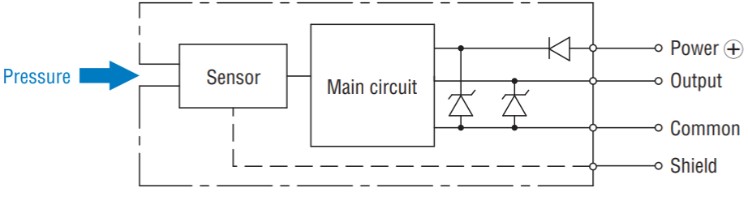

Internal Circuit Diagram
