| Product: | Stepping Motor |
| Manufacturer: | Nidec Copal |
| Features: | 1. Type: Rotation motion |
| 2. No.of poles:10 | |
| 3. Excitation: 2 phase excitation (unipolar driving) | |
| 4. Steps: 120/240/360/480/720 | |
| 5. Step Angle: 3 °/1.5 °/1 °/0.75 °/0.5 ° | |
| 6. RoHS Compliant |
Contact
| Specifications | |
| Packaging method: | Please refer to the product spec |
| Installation type: | Please refer to the product spec |
| Operating temp: | 0 °C ~ 50 °C |

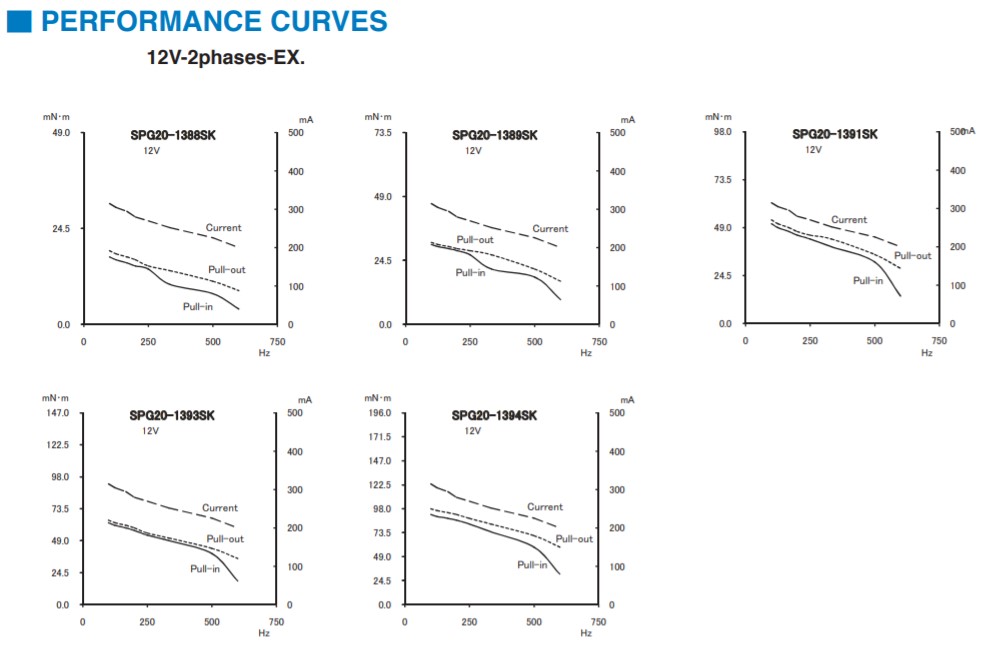

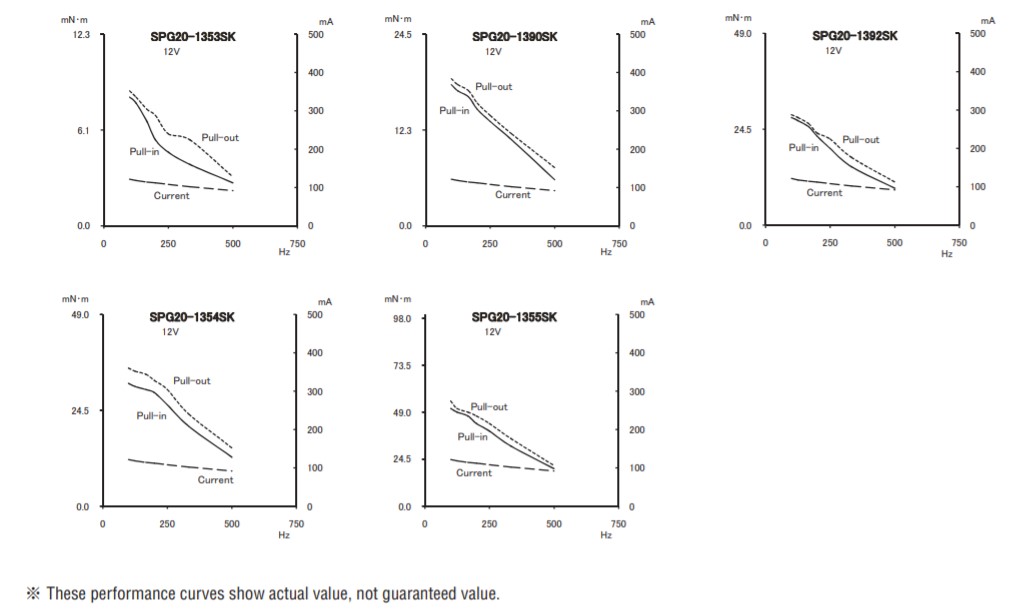

| Ampacity: | Please refer to the performance curve |
| Rated voltage: | Please refer to the performance curve |
| Size (mm): | ∅25 × 37.9 mm |
| note | For further information, please contact:+886-3-4266335 |
