| Product: | Stepping motor |
| Manufacturer: | Nidec Copal |
| Features: | 1. Rotational motion |
| 2. No.of poles: 20 | |
| 3. Excitation: 4/2phase excitation (unipolar driving) | |
| 4. Winding resistance:86Ω/21Ω/50Ω | |
| 5. Steps: 40（2 phases exciting） | |
| 6. Step Angle: 9°（2 phases exciting) | |
| 7. RoHS Compliant |
Contact
| Specifications | |
| Packaging method: | Please follow the product spec |
| Installation type: | Please follow the product spec |
| Operating temp: | 0°C~ 50 °C |

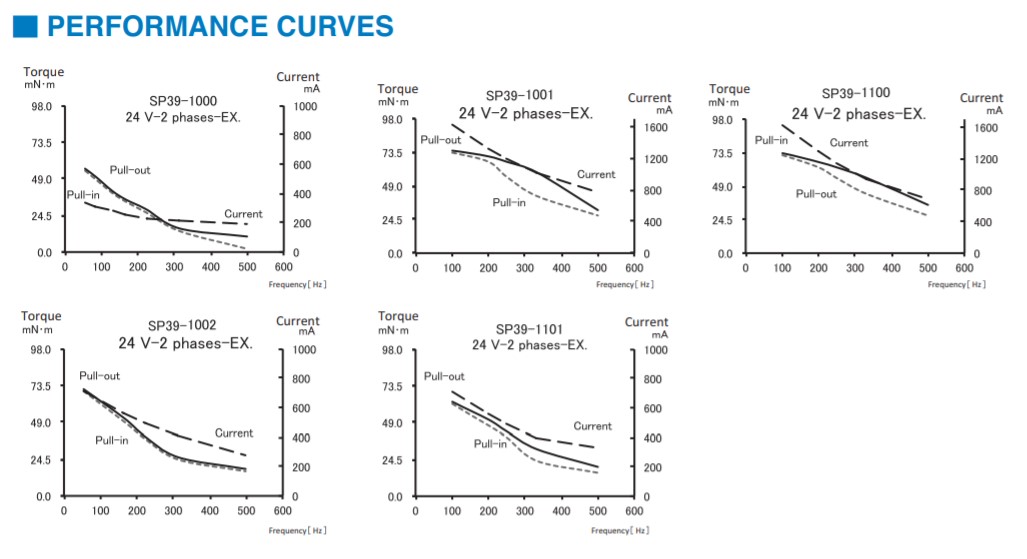

| Ampacity: | Please refer to the performance curve |
| Rated voltage: | Please refer to the performance curve |
| Size (mm): | Φ39x34.9 |
| note | For further information, please contact:+886-3-4266335 |
