| Product: | Stepping motors |
| Manufacturer: | Nidec Copal |
| Features: | 1. Rotational motion |
| 2. No.of poles: 12 | |
| 3. Excitation:2 phase excitation (unipolar driving) | |
| 4. Step: 120/240/360/480/720 | |
| 5. Step Angle:3 °/1.25 °/1 °/0.75 °/0.5 ° | |
| 6. Winding resistance:68Ω/180Ω | |
| 7. RoHS Compliant |
Contact
|
Specifications |
|
| Packaging method: | Please follow the product spec |
| Installation type: | Please follow the product spec |
| Operating temp: | 0°C ~ 50 °C |

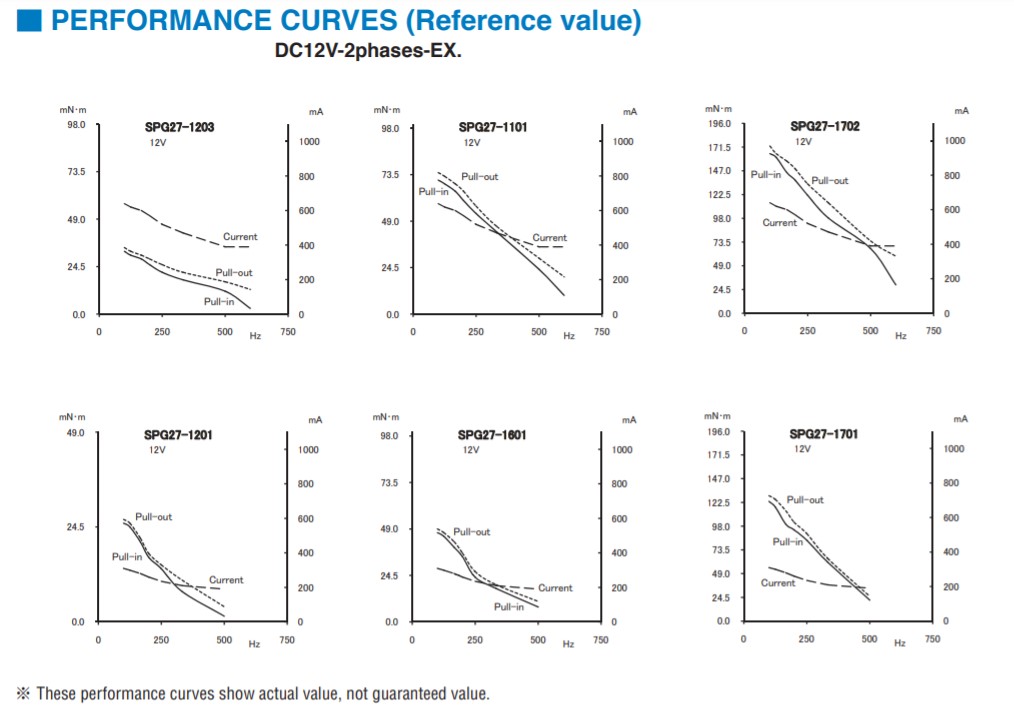

| Ampacity: | Please refer to the performance curve |
| Rated voltage: | Please refer to the performance curve |
| Size (mm): | Φ36.6x37X20 |
| note | For further information, please contact:+886-3-4266335 |
