| Specification |
| Actuation type |
indirect |
| Weight |
.980 g |
| Material fixed contact |
Ag gold-plated |
| Number of poles |
1 - pole |
| Connections |
Solder terminal |
| Mechanical life endurance |
5E5 |
| Rating IEC |
|
| Contact resistance (new condition) |
< 50 mOhm |
| Insulation resistance (new condition) |
> 100 (500 V DC) MOhm |
| Ambient temperature |
| Connection side |
-40 °C ... +85 °C |
|
| Storage Temperature |
-40 °C ... +85 °C |
| Actuators |
gasket, green, silicone rubber, black, POM, standard actuator |
| Housing description |

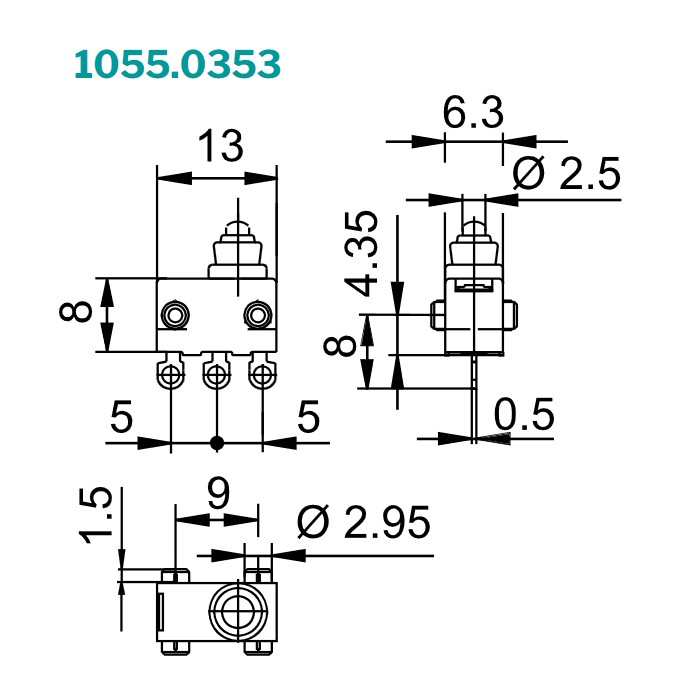

housing: black, PBTP, pin both sides 1.5 long diameter 2.95 |
| Connection surface |
| Bearing connection |
tinned |
| External connection |
tinned |
|
| Contact material |
Ag gold plated |
| Contact distance |
< 3 mm |
| Shock resistance |
50 g |
| Contact type |
jump contact |
| Difference travel max. |
0.4 mm |
| Pretravel max. |
1.3 mm |
| Overtravel min. |
1.2 mm |
| Free position (FP) max. |
10.4 mm |
| Operating position (OP) |
9.4 ±0.3 mm |
| Permissible total travel position |
7.9 mm |
| Miscellaneous |
electrical life endurance 10mA/24V ≥ 5E5, 2A/24V ≥ 100E3 rating not printed connection side cast |
| Additional labeling |
year/week of manuf. acc. to DIN EN 60062 |
