| 產品名稱: | USB 轉串列轉換器 |
| 製造商: | Moxa |
| 產品特色: | 1. 高速資料傳輸，最高傳輸速率可達 921.6 kbps |
| 2. 提供 Windows、macOS、Linux 和 WinCE驅動程式 | |
| 3. Mini-DB9 母接頭轉接線端子模組，簡化接線工作 | |
| 4. LED 指示燈可指示 USB 與 TxD/RxD 活動傳輸 | |
| 5. 2 kV 光電隔離保護（「-I」型號適用） |
Contact

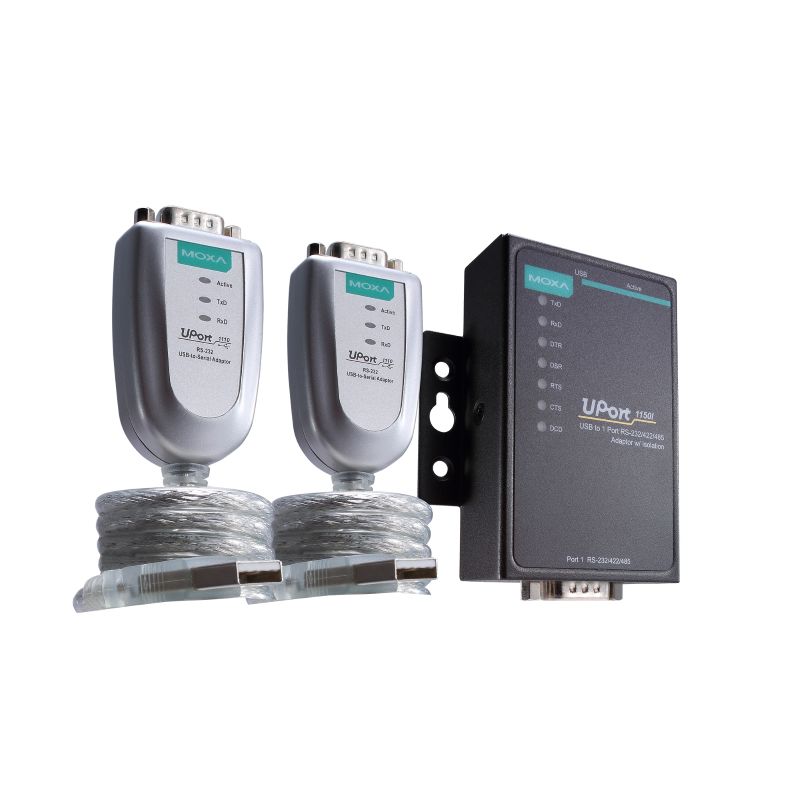

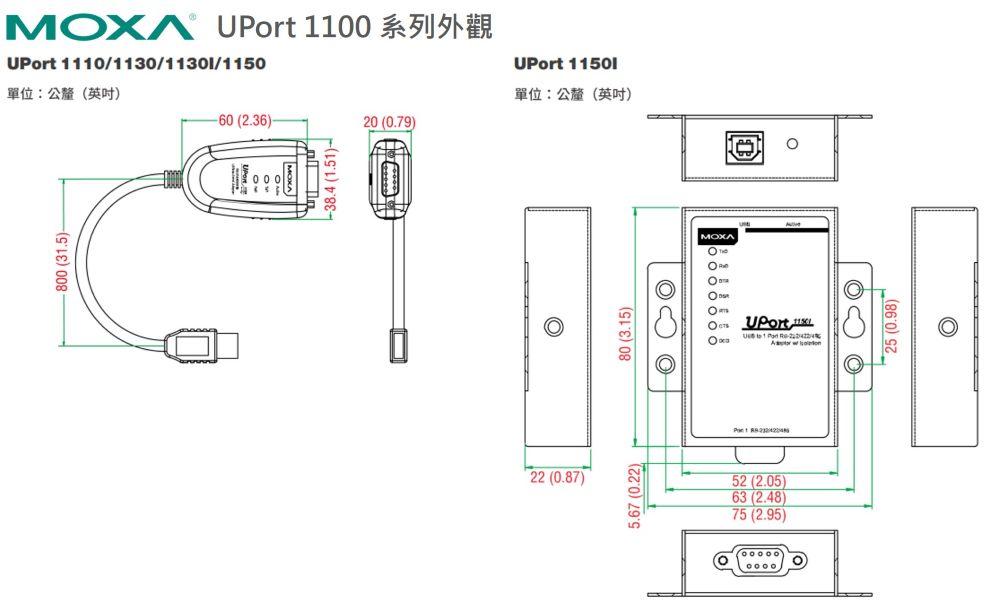

UPort 1100 系列外觀

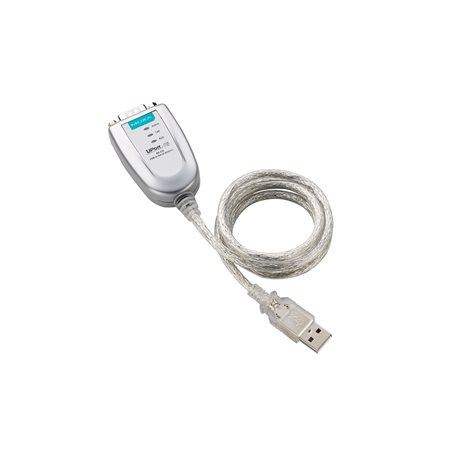

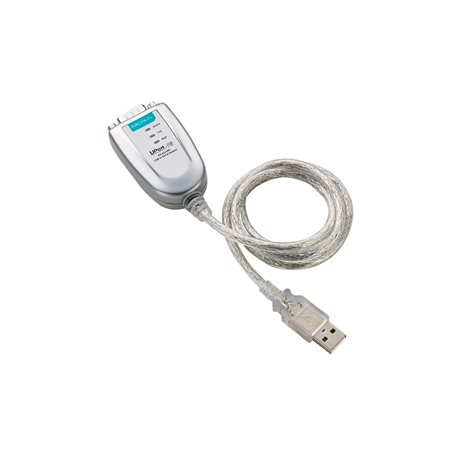

可供選擇的機型
.jpg)
|
.jpg)
|

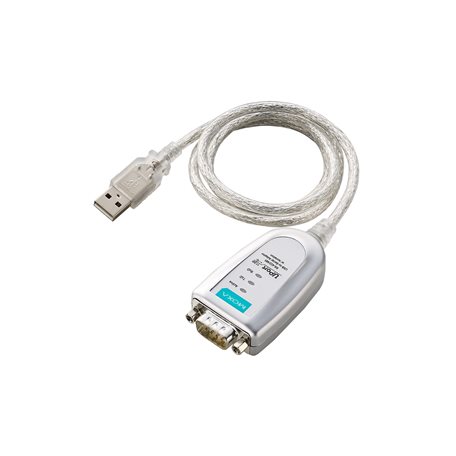

.jpg) UPort 1130I
|
|
|---|---|---|---|
| USB Interface | USB 1.1 | USB 1.1 | USB 1.1 |
| Serial Standards | RS-232 | RS-422/485 | RS-422/485 |
| No. of Serial Ports | 1 | 1 | 1 |
| Isolation | - | - | 2 kV |
| Housing Material | ABS+PC | ABS+PC | ABS+PC |
| Operating Temp. |
0 to 55°C | 0 to 55°C | 0 to 55°C |
|
|
.jpg)

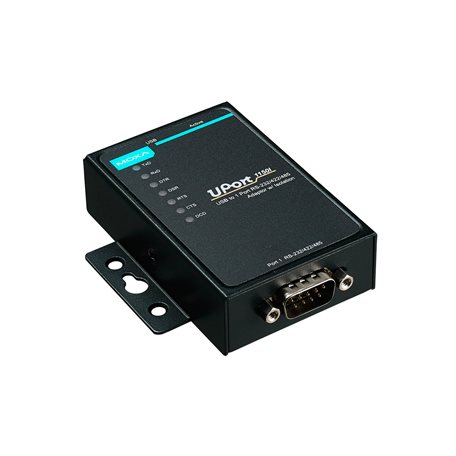

UPort 1150I
|
|
|
| USB Interface | USB 1.1 | USB 1.1 | |
| Serial Standards | RS-232/422/485 | RS-232/422/485 | |
| No. of Serial Ports | 1 | 1 | |
| Isolation | - | 2 kV | |
| Housing Material | ABS+PC | Metal | |
| Operating Temp. | 0 to 55°C | 0 to 55°C |
