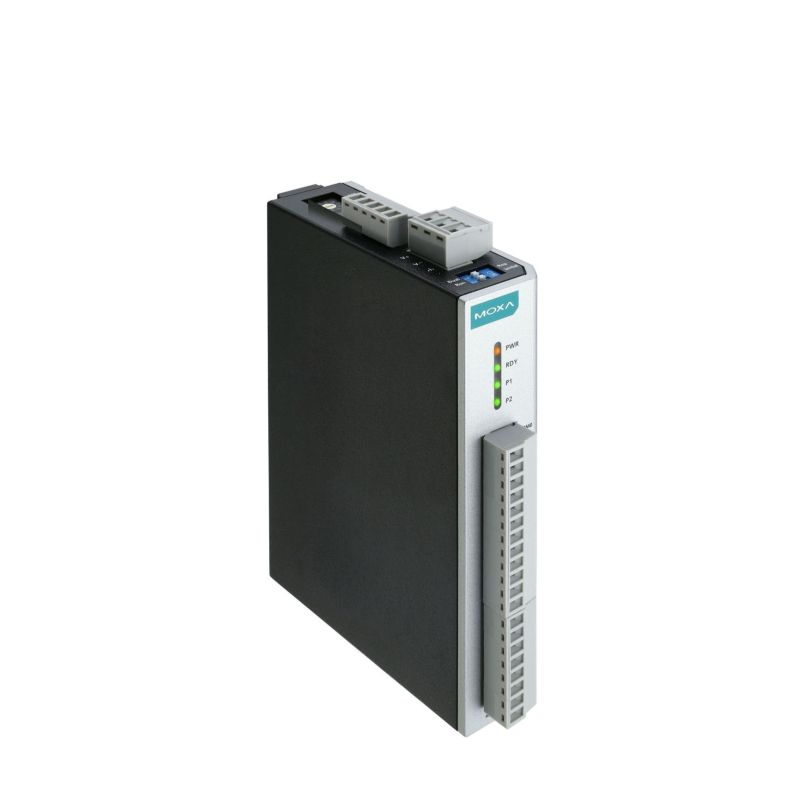

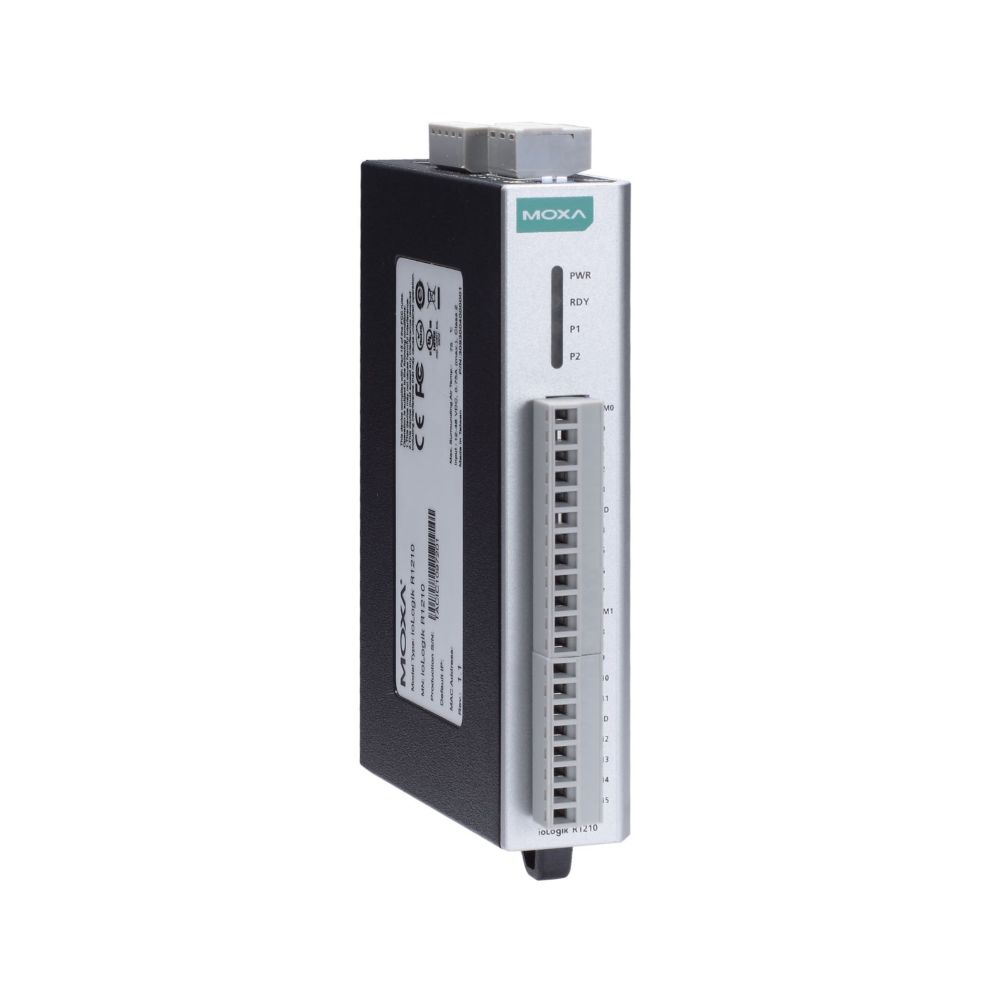

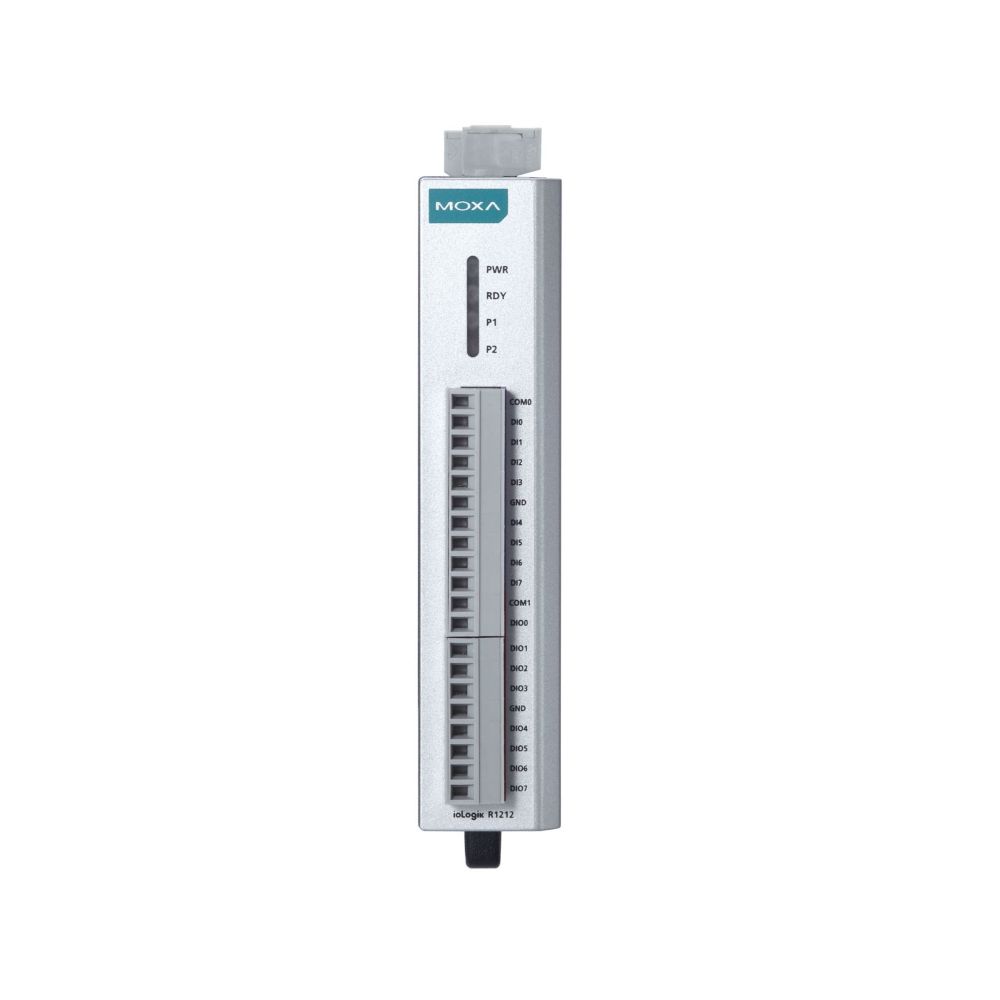

Moxa RS-485 遠端 I/O ioLogik R1210

Moxa RS-485 遠端 I/O ioLogik R1210

產品名稱: 配備2埠 RS-485 遠端 I/O
製造商:  Moxa
產品特色: 1. 雙 RS-485 串口遠端 I/O，內建中繼器
　 2. 支援多點通訊參數安裝
　 3. 可透過 USB 安裝通訊參數及升級韌體
　 4. 可透過 RS-485 連結升級韌體
　 5. 支援 -10 至 75°C（14 至 167°F）的寬溫環境
6. 點位：16 x DI

Moxa澤澤商城採購
Download
Contact

Input/Output Interface

  • Buttons

    Reset button

  • Analog Input Channels

    ioLogik R1240 Series: 8

  • Analog Output Channels

    ioLogik R1241 Series: 4

  • Configurable DIO Channels (by software)

    ioLogik R1212 Series: 8

  • Digital Input Channels

    ioLogik R1210 Series: 16
    ioLogik R1212 Series: 8
    ioLogik R1214 Series: 6

  • Isolation

    3k VDC or 2k Vrms

  • Relay Channels

    ioLogik R1214 Series: 6

Digital Inputs

  • Connector

    Screw-fastened Euroblock terminal

  • Counter Frequency

    2.5 kHz

  • Digital Filtering Time Interval

    Software configurable

  • Dry Contact

    On: short to GND
    Off: open

  • I/O Mode

    DI or event counter

  • Points per COM

    ioLogik R1210/R1212 Series: 8 channels
    ioLogik R1214 Series: 6 channels

  • Sensor Type

    Dry contact
    Wet Contact (NPN or PNP)

  • Wet Contact (DI to COM)

    On: 10 to 30 VDC
    Off: 0 to 3 VDC

Digital Outputs

  • Connector

    Screw-fastened Euroblock terminal

  • Current Rating

    200 mA per channel

  • I/O Mode

    DO or pulse output

  • I/O Type

    Sink

  • Pulse Output Frequency

    5 kHz

  • Over-Current Protection

    0.65 A per channel @ 25°C

  • Over-Temperature Shutdown

    175°C (typical), 150°C (min.)

  • Over-Voltage Protection

    45 VDC (typical)

Relays

  • Breakdown Voltage

    500 VAC

  • Connector

    Screw-fastened Euroblock terminal

  • Contact Current Rating

    Resistive load: 5 A @ 30 VDC, 250 VAC, 110 VAC

  • Contact Resistance

    100 milli-ohms (max.)

  • Electrical Endurance

    100,000 operations @ 5 A resistive load

  • Initial Insulation Resistance

    1,000 mega-ohms (min.) @ 500 VDC

  • Mechanical Endurance

    5,000,000 operations

  • Pulse Output Frequency

    0.3 Hz at rated load

  • Type

    Form A (N.O.) power relay

  • Note

    Ambient humidity must be non-condensing and remain between 5 and 95%. The relays may malfunction when operating in high condensation environments below 0°C.

Analog Inputs

  • Accuracy

    ioLogik R1240:
    ±0.1% FSR @ 25°C
    ±0.3% FSR @ -10 to 60°C

    ioLogik R1240-T:
    ±0.1% FSR @ 25°C
    ±0.3% FSR @ -10 to 60°C
    ±0.5% FSR @ -40 to 75°C

  • Built-in Resistor for Current Input

    120 ohms

  • Connector

    Screw-fastened Euroblock terminal

  • I/O Mode

    Voltage/Current

  • I/O Type

    Differential

  • Input Impedance

    10 mega-ohms (min.)

  • Input Range

    0 to 10 VDC
    0 to 20 mA
    4 to 20 mA
    4 to 20 mA (with burn-out detection)

  • Resolution

    16 bits

  • Sampling Rate

    All channels: 12 samples/sec
    Per channel: 1.5 samples/sec
    Only one channel enabled: 12 samples/sec

Analog Outputs

  • Accuracy

    ioLogik R1241:
    ±0.1% FSR @ 25°C
    ±0.3% FSR @ -10 to 60°C

    ioLogik R1241-T:
    ±0.1% FSR @ 25°C
    ±0.3% FSR @ -40 to 75°C

  • Connector

    Screw-fastened Euroblock terminal

  • Output Range

    0 to 10 VDC
    0 to 20 mA
    4 to 20 mA

  • Resolution

    12-bit

  • Voltage Output

    10 mA (max.)

  • Load (Current Mode)

    Internal power: 400 ohms (max.)
    24 V external power: 1000 ohms (max.)

LED Interface

  • LED Indicators

    PWR, RDY, P1, P2

Serial Interface

  • Baudrate

    1200 bps to 921.6 kbps

  • Connector

    Terminal block

  • No. of Ports

    2

  • Parity

    None
    Even
    Odd

  • Pull High/Low Resistor for RS-485

    1 kilo-ohm, 150 kilo-ohms

  • Serial Standards

    RS-485

  • Stop Bits

    1, 2

  • Surge

    1 kV

  • ESD

    15 kV

  • Data Bits

    8

  • Flow Control

    None
    XON/XOFF

Serial Signals

  • RS-485-2w

    Data+, Data-, GND

Serial Software Features

  • Industrial Protocols

    Modbus RTU Server (slave)

Power Parameters

  • Power Connector

    Screw-fastened Euroblock terminal

  • No. of Power Inputs

    1

  • Input Voltage

    12 to 48 VDC

  • Power Consumption

    ioLogik R1210 Series: 154 mA @ 24 VDC
    ioLogik R1212 Series: 187 mA @ 24 VDC
    ioLogik R1214 Series: 207 mA @ 24 VDC
    ioLogik R1240 Series: 216 mA @ 24 VDC
    ioLogik R1241 Series: 343 mA @ 24 VDC

Physical Characteristics

  • Housing

    Plastic

  • Dimensions

    27.8 x 124 x 84 mm (1.09 x 4.88 x 3.31 in)

  • Weight

    200 g (0.44 lb)

  • Installation

    DIN-rail mounting
    Wall mounting

  • Wiring

    I/O cable, 16 to 26 AWG
    Power cable, 12 to 24 AWG

Environmental Limits

  • Operating Temperature

    Standard Models: -10 to 75°C (14 to 167°F)
    Wide Temp. Models: -40 to 85°C (-40 to 185°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Altitude

    2000 m

Standards and Certifications

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 0.5 kV
    IEC 61000-4-5 Surge: Power: 2 kV
    IEC 61000-4-6 CS: 3 V
    IEC 61000-4-8 PFMF

  • Safety

    UL 508

  • Shock

    IEC 60068-2-27

  • Vibratio

    IEC 60068-2-6

Declaration

  • Green Produc

    RoHS, CRoHS, WEEE

MTBF

  • Tim

    1,239,293 hrs

  • Standard

    Telcordia SR332

Warranty

  • Warranty Perio

    ioLogik R1214: 2 years
    ioLogik R1210/R1212/R1240/R1241 Series: 5 years

  • Detail

    See www.moxa.com/tw/warranty
