產品名稱: |

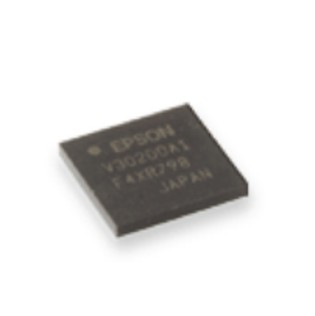

Epson 語音 IC |
|
製造商: |
|
|
產品特色: |
1. 採 Epson 的 Text to speech 語音生成軟體，支援 12 種語言，無須額外錄音成本 |
|
|
2. 無需 CPU 資源的聲音處理 |
|
|
3. 高品質與高壓縮率，可儲存大量聲音數據、長時間音樂 |
|
|
4. 根據產品需求選擇聲音輸出模式，可在揚聲器、蜂鳴器（電磁蜂鳴器、壓電蜂鳴器）上播放旋律/語音 |
|
5. 低功耗、快速喚醒 |
產品規格
|
|
S1C31D50 |
S1C31D51 |
S1C31D41 |
|
Flash |
192 KB (both program and voice) |
96KB(both program and voice) |
|
|
RAM |
8KB(HW Processor is not active:+14KB) |
10KB(HW Processor is not active:+12KB) |
8KB(HW Processor is not active:+18KB) |
|
Internal Oscillator |
16/8/4MHz 1% with 32kHz external-OSC |
16/8/4MHz ±1%@Ta=0~85℃ |
|
|
HW Processor |
ver1.00 |
ver2.00 |
ver3.00 |
|
Sound Play Algorithm |
EOV(EPSON Original High Compress & High Quality Format) / 16bit PCM |
||
|
Sound Play channels |
2ch Mixing Play(e.g. Ch.0:Voice, Ch.1:BGM) |
||
|
Sampling Frequency |
15.625kHz, (Suitable for Back Ground Music) |
||
|
Bitrate |
EOV:16/24/32/40 kbps |
EOV:16/24 kbps |
|
|
Multi-SoundROM |
Multiple independent Sound ROM data can be stored for multilingual support, etc. |
||
|
Gapless Sound Play |
- |
supported |
- |
|
Volume Setting |
supported(0db to -63.0db:0.5db step, silence) |
||
|
Repeat Setting |
supported(1 to 254times, repeat until stop command) |
||
|
Voice Speed Conversion |
75% - 125% (5% step) Ver1.00 |
75% - 125% (5% step) Ver2.00 |
|
|
Voice Pitch Conversion |
- |
75% - 125% (5% step) |
|
|
Tone Generation |
- |
supported |
|
|
Buzzer Voice/Melody |
- |
supported |
- |
|
Serial Interface |
SPI(3ch), UART(3ch), I2C(3ch), QSPI(1ch) |
||
|
ADC |
12bit(max 8 port) |
12bit(max 8port,1port for temperature sensor) |
|
|
SVD |
VDD: 28 levels(1.8 to 5.0 V) / external voltage: 32 levels(1.2 to 5.0 V) |
||
|
DMA |
4ch (Memory ⇔ Memory, Memory ⇔ Peripheral) |
||
|
RFC |
CR oscillation type 24-bit counters |
||
|
Timers |
16bit Timer(8ch), 16bit PWM(2ch), WDT, RTC |
||
|
Power Supply |
1.8V～5.5V VDD / 3.3v SPI-Flash interface power supply |
||
|
Flash Programming |
2.4 ～ 5.5 V |
2.2 ～ 5.5 V |
|
|
Power Consumption |
RUN:250uA/MHz (internal:1.8v) max 16MHz |
RUN:215uA/MHz(internal:1.8v) max 16MHz |
|
|
Package |
P-TQFP048-0707-0.50(0.5mm pitch) |
P-TQFP032-0707-0.80(0.8mm pitch) |
|
|
IEC-60730 |
Supported by Sample SW |
||
瑞澤電子是 Epson 代理商，提供各式 Epson 電子零件產品。如您有 Epson IC 相關需求，歡迎至原廠授權電商平台採購或與我們聯繫。
