NIDEC LiDAR - Polygon Mirrors & Polygon Laser Scanner Motors Introduction


 NIDEC COPAL - Polygon Mirrors & Polygon Laser Scanner Motors

  What is LiDAR?

 Light Detection and Ranging


　We would like to pick up the LiDAR from among many sensors for autonomous driving vehicles.

　The word “LiDAR” is an abbreviation for “Light Detection and Ranging”. It's an optical sensor technology that measures the distance to an object by irradiating an object with a laser beam while scanning it and measuring the time required for the object to bounce back, and identify the position and property of the object.

　The development of LiDAR was originally utilized as a survey technique for measuring topography, buildings, forestry structures, etc. by loading it on artificial satellites and airplanes. Recently, small and light-weight LiDAR have also been developed, and they can be mounted on UAV (drone), which are unmanned airplanes, and surveyed to generate precise 3D mapping data.

 lidar scanning for 3D mapping data


　In addition, LiDAR is expected to play an important role in the field of autonomous driving by utilizing its advanced visual recognition functions. LiDAR is used to create 3D mapping data and to recognize the surrounding environment (pedestrians, cars, etc.) required for autonomous driving.

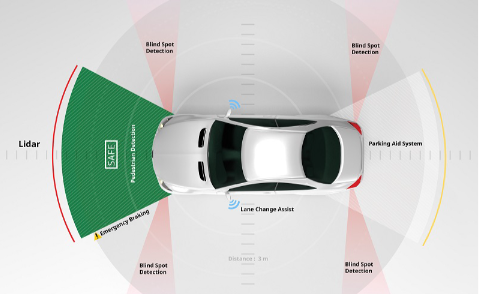

  Roles played by LiDAR in autonomous driving


　Even if it is said to be an autonomous driving, level segments of automation are clearly defined.
　The image of “Level-Cla​ssificatio​n​ of Automated Driving Systems” based on the SAE (Society of Automotive Engineers) announced from U.S. NHTSA (National Highway Traffic Safety Administration) is shown below for reference.

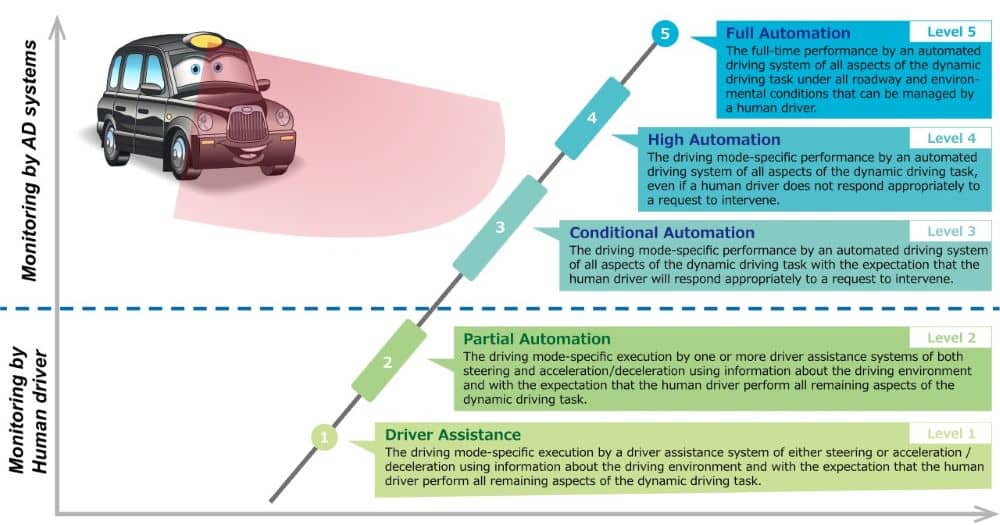

Level-Cla​ssificatio​n​ of Automated Driving Systems


　Up to Level 2 is a category of ADAS based on automatic braking, ACC (Adaptive Cruise Control) and LKAS (Lane Keep Assist System). Level 3 or higher is called the true autonomous driving level. Autonomous driving is advancing day by day, but in today's technology, the three sensors equipped in autonomous driving vehicles are mainly cameras, millimeter-wave radars and LiDAR.
　Among them, LiDAR has excellent azimuth resolution, which makes it possible to accurately detect distances and positional relations with surrounding obstacles compared to cameras and millimeter-wave radars, and also to detect objects with low radio reflectivity (such as signs and trees) without difficulty. Therefore, LiDAR is positioned as an indispensable sensor technique for true practical automated driving that is worth more than the level 3 or 4 of the previous image.


LiDAR scanning demo video:

  NIDEC COMPONENTS is the No.1 global supplier of Polygon scanner products

　NIDEC COMPONENTS has manufactured millions of lowcost compact polygon mirrors and laser scanners for various industries including manufacturing, industrial and biomedical markets.

　Our strength lies in our expertise and ability to mass produce custom made, high quality compact polygon scanner assemblies at a competitive price.

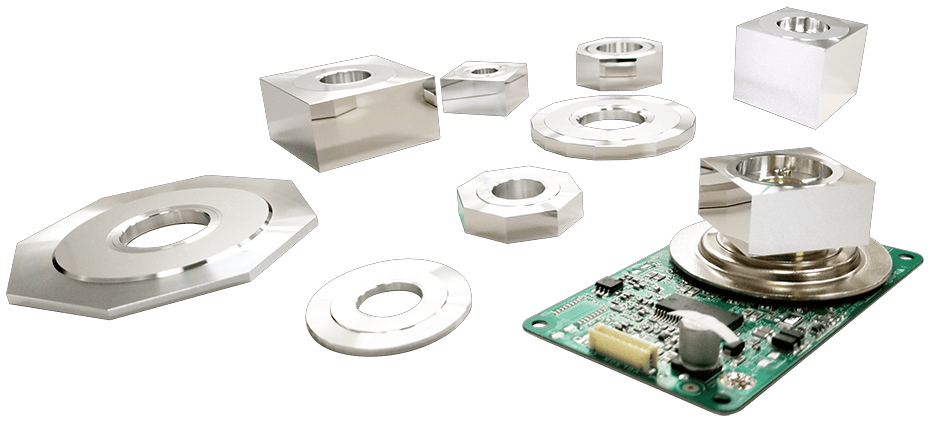

Nidec mirrors&scanner lidar products


－ FEATURES －

  • No.1 in global market share for polygon mirrors in the world
  • Integrated production for high efficiency and strict quality control.
  • Using our unique “Aerodynamic Bearings” technology our scanner motors can achieve ultra high speed rotation while maintaining low vibration and long life.
  • Standard Ball Bearing type scanner motors are also available.
  • Scanners designed for LiDAR applications are currently under development.

Source: Nidec Components

Horustech Electronics is the authorized distributor in Taiwan for Nidec Components and various other Japanese electronic component manufacturers. If you require any related components, please feel free to contact us.

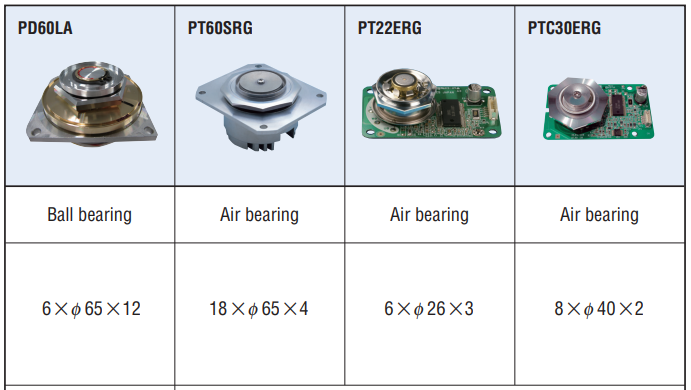

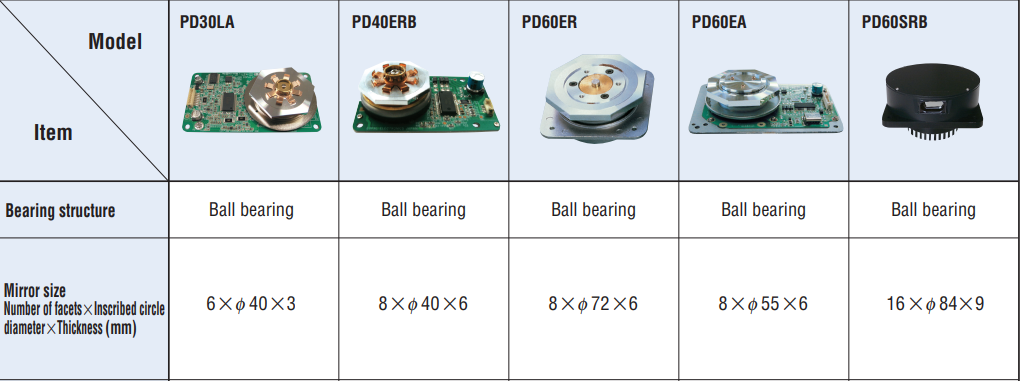

 Nidec Polygon scanner products

 Nidec Polygon scanner products
＊For more details, please inquire to receive the specifications.

LiDAR #Polygon Mirrors #Polygon Laser Scanner Motors #Nidec
#Model: PD30LA, PD40ERB, PD60ER, PD60EA, PD60SRB, PD60LA, PT60SRG, PT22ERG, PTC30ERG
