| Product: | Toggle switch |
| Manufacturer: | Nidec Copal |
| Features: | 1. Industry’s first toggle switch compatible with throughhole reflow soldering. |
| 2. Compatible with pick and place machines. | |
| 3. Heat resistant resin for refl ow and dip soldering. | |
| 4. Gold-plated contacts. |
Contact
| Specifications | |
| Packaging method: | Tape&Reel, Pack |
| Installation type: | Through hole |
| Operating temp: | －40℃ ～ +85℃ |
| Ampacity: | max.：50mA（Resistive load） min.：1μA |
| Rated voltage: | max.：AC／DC 48V （Resistive load） min.：AC／DC 20mV |
| Size (mm) (L*W*H): |
10.15X5X8.3 9.5X5X8 |
| note | For further information, please contact:+886-3-4266335 |
ELECTRICAL CHARACTERISTICS
| Rating: | Max.：48VAC／DC 50mA (Resistive load） Min.：20mVAC／DC 1μA |
|---|---|
| Initial contact resistance: | 100mΩ max. (1.5mA 200μ VAC) |
| Dielectric strength: | 500VAC 1 minute |
| Insulation resistance: | 500mΩ min. (500VDC) |
| Electrical life: | 10,000 cycles at max. rating |
| Operating temperature range: | －40℃～＋85℃ |
| Storage temperature range: | －40℃～＋85℃ |

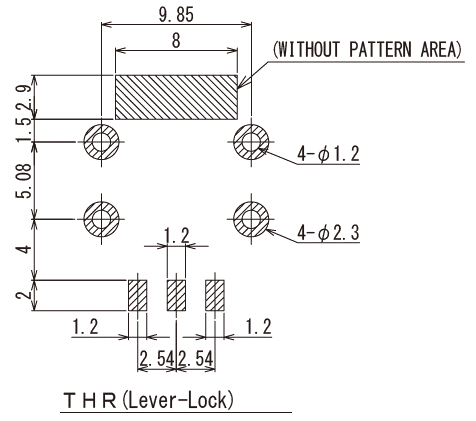

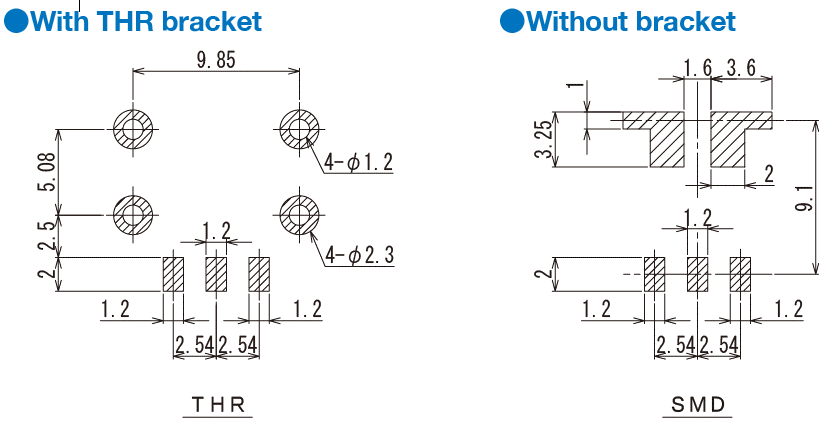

PC Hole Layouts
(1) Standard
(2) Locking Lever

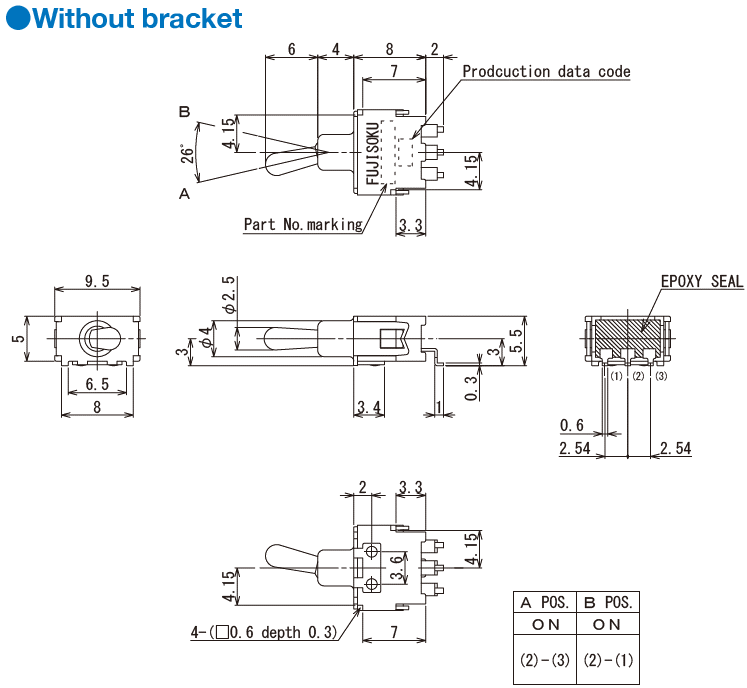

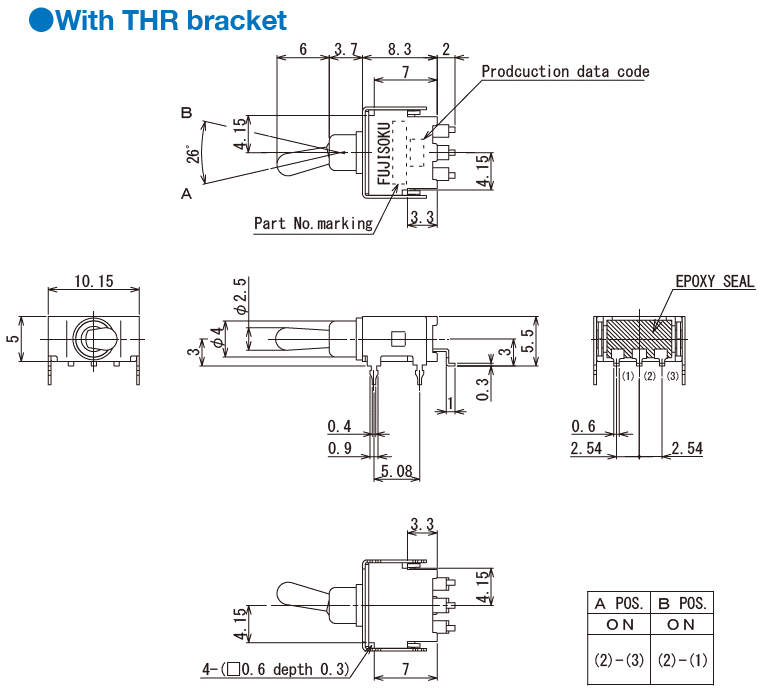

Outline dimensions
(1) Standard

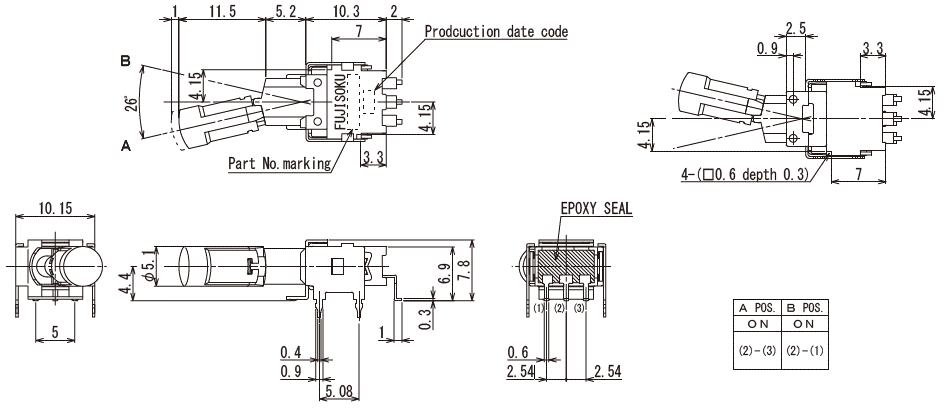

(2) Locking Lever
Soldering

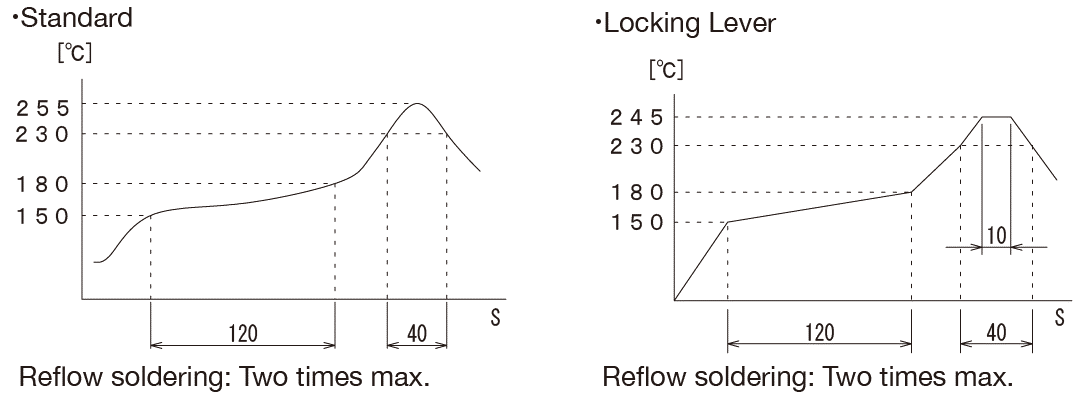

(1) Reflow soldering
(2) Manual soldering ：
- Device：Solder iron, 380℃ Max., 3sec Max.
