| Product: | DIP Slide Switch |
| Manufacturer: | Nidec Copal |
| Features: | 1. Lowest profile design of 1.45 mm |
| 2. Fine pitch of 1 mm | |
| 3. Easy motion with knob height of 0.2 mm | |
| 4. 2, 3, 4, 8 bits with gull wing and only 1 bit type with Gull wing or through hole either; 6 types |
Contact
| Specifications | |
| Packaging method: | Tape&Reel |
| Installation type: | SMD, through hole (only 1 bit type) |
| Operating temp: | -40 ℃~ 85℃ |
| Ampacity: | Non-switching︰100 mA Switching︰100 mA, 25 mA Minimum︰1 µA |
| Rated voltage: | Non-switching︰ DC50 V Switching︰DC6 V , DC24 V Minimum︰DC20 mV |

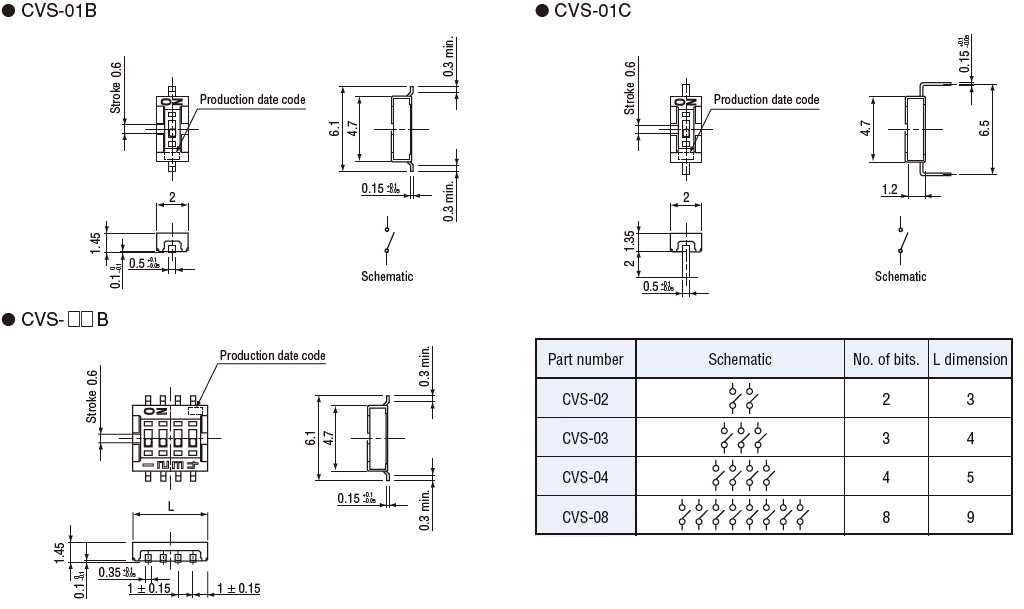

| Size (mm) (L*W*H): |
3X4.7X1.45 4X4.7X1.45 5X4.7X1.45 9X4.7X1.45 |
| note | For further information, please contact:+886-3-4266335 |
Electrical Characteristics
| Contact rating: | Non-switching: DC50 V 100 mA Switching: DC6 V 100 mA, DC24 V 25 mA Minimum: DC20 mV 1 µA |
|---|---|
| Contact resistance: | 200m Ω Max. |
| Insulation resistance: | 100 MΩ (DC100 V) Min. |
| Dielectric strength: | AC250 V, 60 s |
Mechanical Characteristics
| Operating force: | 3 N {0.306 kgf} Max. |
|---|---|
| Stop strength: | 6 N {0.61 kgf}, 60 s |
| Solderability: | 245 ± 3 °C, |
| Soldering heat: | Reflow: 255 °C (Peak temp.) Manual soldering：350 ± 10 °C, 3 ~ 4 s |
| Shear (Adhesion): | 5 N {0.51 kgf} 10 s |
| Substrate bending: | Width 90 mm, bend 3 mm, 5 s, 1 time |
| Pull-off strength: | 5 N {0.51 kgf} 10 s |
Environmental Characteristics
| Vibration: | Amplitude 1.5 mm or Acceleration 98 m/s², 10-500 Hz, 3 directions for 10 cycles each |
|---|---|
| Shock: | 490 m/s², |
| Load life: | Continuous load 2000 cycles, |
| Humidity: | −10 ~ 65 °C, |
| High temp. exposure: | 85 °C, 96 h |
| Low temp. exposure: | −40 °C, 96 h |
| Thermal shock: | −40(0.5 h) ~ 85 °C(0.5 h), |
