| Product: | DIP SLIDE SWITCH |
| Manufacturer: | Nidec Copal |
| Features: | 1. Terminal spacing: Half Pitch (1.27 mm) |
| 2. Surface mount type (not washable) | |
| 3. Excellent contact stability by twin Gold-plated contact | |
| 4. 12 types of 2, 4, 8 bit with either gull wing or J-hook available, and ON direction upper or lower |
Contact
| Specifications | |
| Packaging method: | Tape&Reel |
| Installation type: | Surface mount right angle type |
| Operating temp: | -40℃ ~ 85℃ |
| Ampacity: | Non-switching: 100mA Switching: 100 mA, 25 mA Minimum: 1 µA |
| Rated voltage: | Non-switching: DC50V Switching: DC6V Minimum: DC20mV |

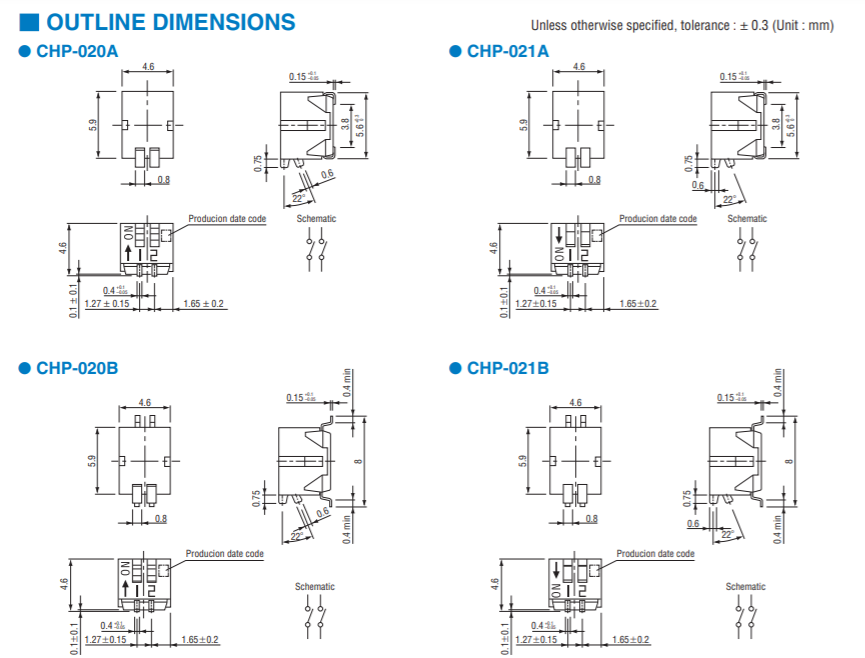

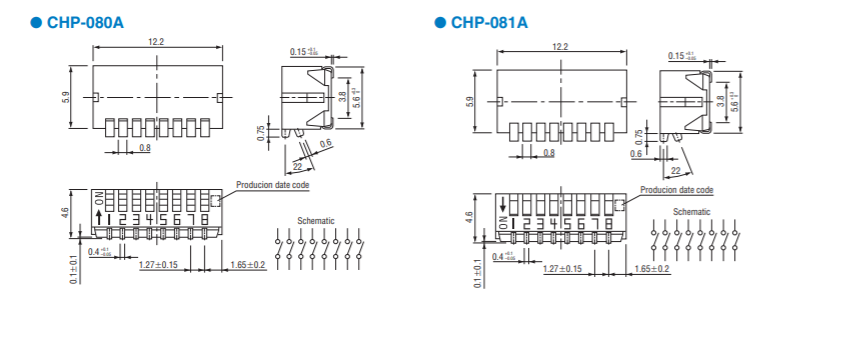

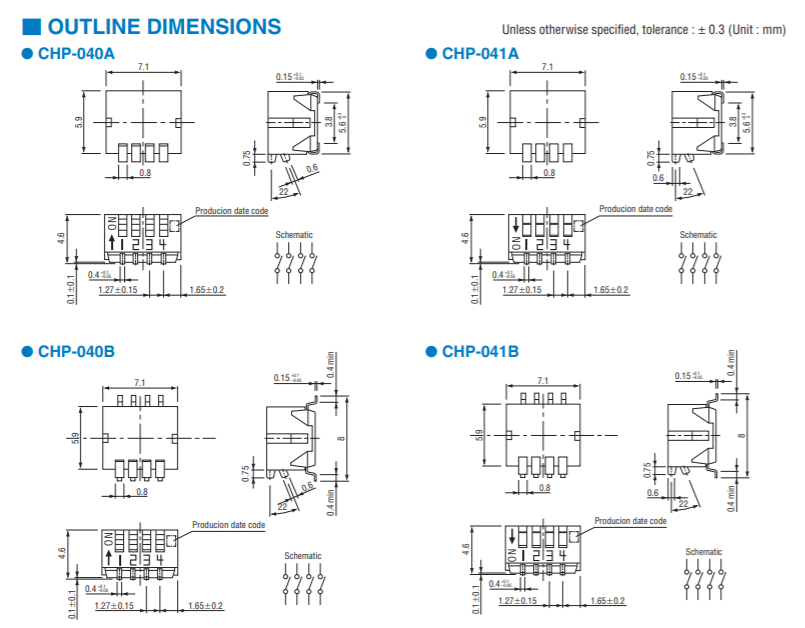

| Size (mm) (L*W*H): |
4.6X5.9X4.6 7.1X5.9X4.6 12.2X5.9X4.6 |
| note | For further information, please contact:+886-3-4266335 |
Mechanical Characteristics
| Operation angle: | 22 ° |
|---|---|
| Operating force: | 5 N {0.51 kgf} Max. |
| Stop strength: | 10 N{1.02 kgf}, 60s |
| Solderability: | 245 ± 3 °C,2 ~ 3 s |
| Soldering heat: | Reflow: 255 °C (Peak temp.) Manual soldering: 350 ±10 °C, 3~4 s |
| Shear (Adhesion): | 5 N {0.51 kgf} 10 s |
| Substrate bending: | Width 90 mm, bend 3 mm,5 s, 1 time |
| Pull-off strength: | 5 N {0.51 kgf} 10 s |
Environmental Characteristics
| Vibration: | Amplitude 1.5 mm or Acceleration 98 m/s², 10-500 Hz, 3 directions for 10 cycles each |
|---|---|
| Shock: | 490 m/s²,11 ms 6 directions for 3 times each |
| Load life: | Continuous load 1000 cycles,DC6 ±0.5 V, 100 ±10 mA |
| Humidity: | −10 ~ 65 °C,Relative humidity 0~96 %,24 h for 10 cycles |
| High temp. exposure: | 85 °C, 96 h |
| Low temp. exposure: | -40 °C, 96 h |
| Thermal shock: | 40(0.5 h)~85 °C(0.5 h), |
