| Product: | DIP Slide Switch |
| Manufacturer: | Nidec Copal |
| Features: | 1. Meets EIAJ SOP standard outline dimensions (B type) |
| 2. Low profile design of 2.5 mm | |
| 3. Surface installation height 2.5mm | |
| 4. 12 types of 1, 2, 4, 6, 8 or 10 bit with either gull wing or J-hook available | |
| 5. Excellent contact stability by twin Gold-plated contact |
Contact
| Specifications | |
| Packaging method: | Tape&Reel |
| Installation type: | Surface mount type |
| Terminal type: | J-hook, gull wing |
| Operating temp: | -40℃ ~ 85℃ |
| Ampacity: | Non-switching: 100 mA Switching: 100 mA, 25 mA Minimum: 1 µA |
| Rated voltage: | Non-switching: DC50 V Switching: DC6 V, DC24 V Minimum: DC20 mV |

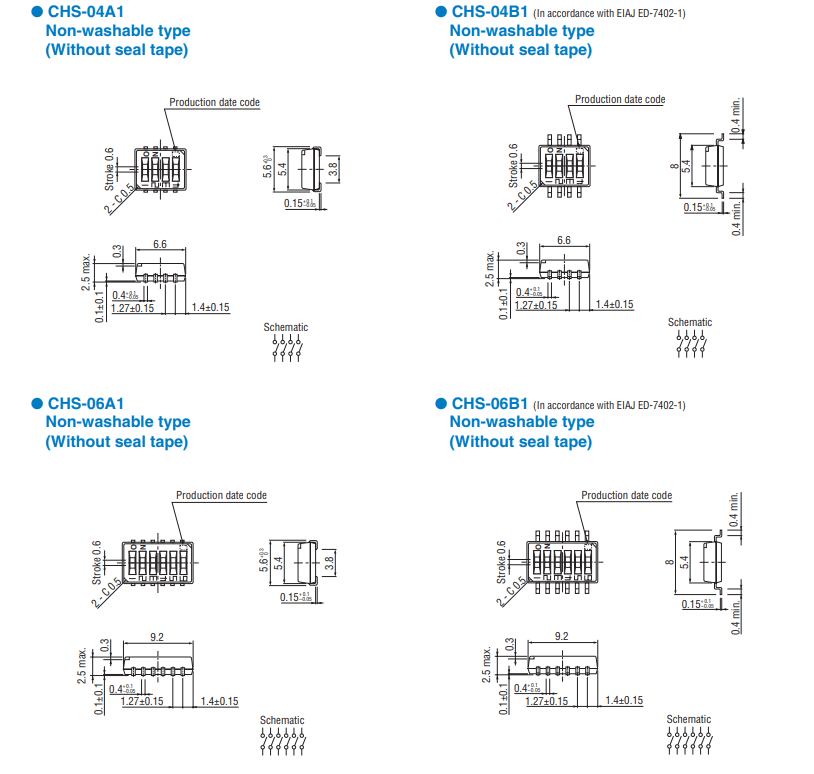

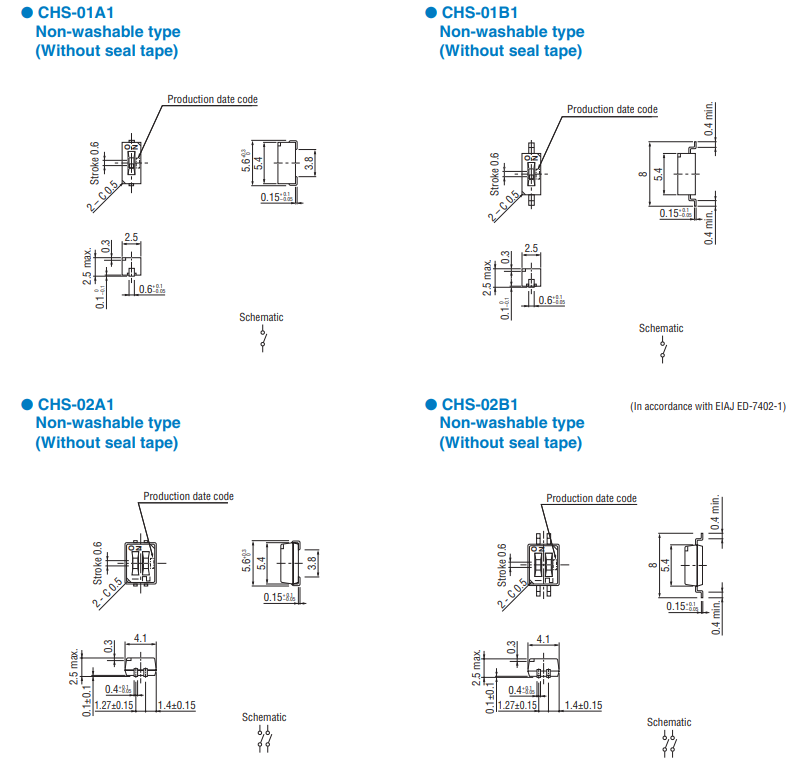

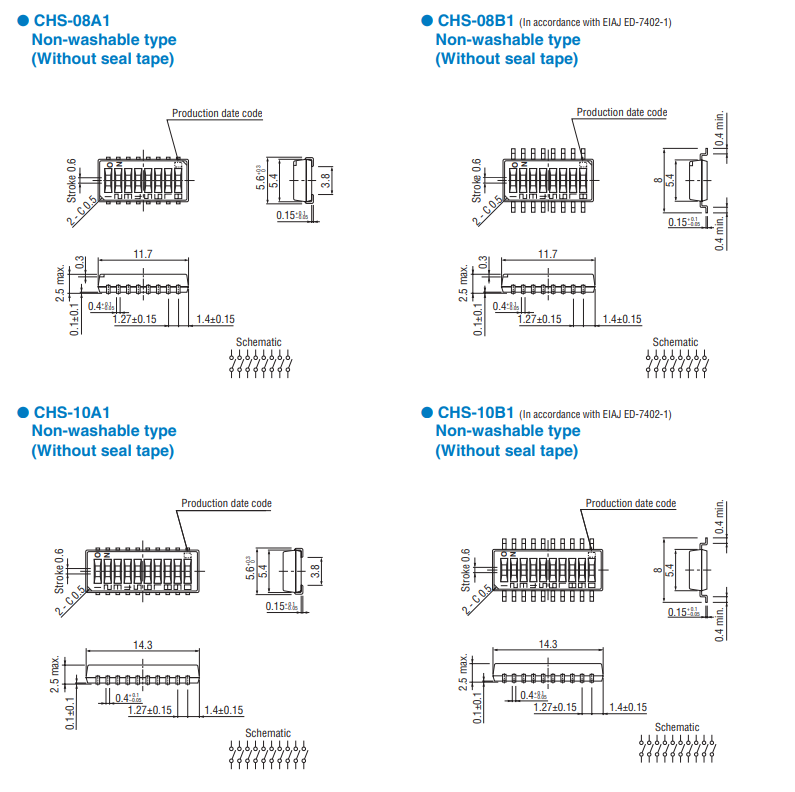

| Size (mm) (L*W*H): |
2,5x5.6x2.5 4.1x5.6x2.5 6.6x5.6x2.5 9.2x5.6x2.5 11.7x5.6x2.5 14.3x5.6x2.5 |
| note | For further information, please contact:+886-3-4266335 |
Mechanical Characteristics |
|
| Operating force: | 0.5 ~ 5 N {0.05 ~ 0.51 kgf} |
| Stop strength: | 10 N {1.02 kgf}，60 s |
| Solderability: | 245±3℃，2~3s |
| Soldering heat: | Reflow: 255 °C (Peak temp.) Manual soldering: 350 ±10 °C, 3~4 s |
| Shear (Adhesion): | 5N {0.51 kgf} 10s |
| Substrate bending: | Width 90 mm, bend 3 mm, 5 s, 1 time |
| Pull-off strength: | 5N {0.51kgf} 10s |
Environmental Characteristics |
|
| Vibration: | Amplitude 1.5 mm or Acceleration 98 m/s², 10-500 Hz, 3 directions for 10 cycles each |
| Shock: | 490 m/s²,11 ms 6 directions for 3 times each |
| Load life: | Continuous load 2000 cycles,DC6 ±0.5 V, 100 ±10 mA |
| Humidity: | −10 ~ 65 °C, Relative humidity 0~96 %,24 h for 10 cycles |
| High temp. exposure: | 85℃，96 h |
| Low temp. exposure: | -40℃，96 h |
| Thermal shock: | -(0.5 h) 40 ~ 85℃ (0.5 h)，5 cycles |
