| Product: | Tact switch |
| Manufacturer: | MinebeaMitsumi |
| Features: | 1. Minimized mounting area. |
| 2. Using the stainless steel metal dome with long life and sharp feeling. | |
| 3. Suitable for mounting a narrow key pitch. | |
| 4. Suitable for SMT reflow soldering. |
Contact
| Specifications | |
| Packaging method: | Tape&Reel |
| Installation type: | SMD |
| Operating temp: | -10℃ ~ +60℃ |
| Ampacity: | 50mA |
| Rated voltage: | DC 12V |
| Size (mm) (L*W*H): |
3.3×2.9×1.0 3.3×2.9×1.5 3.3×2.9×2.0 |
| note | For further information, please contact:+886-3-4266335 |
Type List
| Type | Operating Force | Boss | Pcs/Reel |
| SOF-242HST | 1.6N | With | 5,000 |
| SOF-242HNT | 1.6N | Without | 5,000 |
| SOF-262HST | 1.6N | With | 5,000 |
| SOF-262HNT | 1.6N | Without | 5,000 |
| SOF-232HST | 1.6N | With | 5,000 |
| SOF-232HNT | 1.6N | Without | 5,000 |
DIMENSIONS

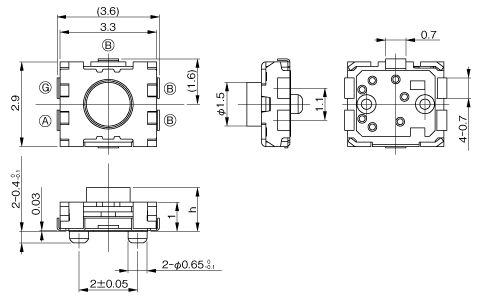

Circle button

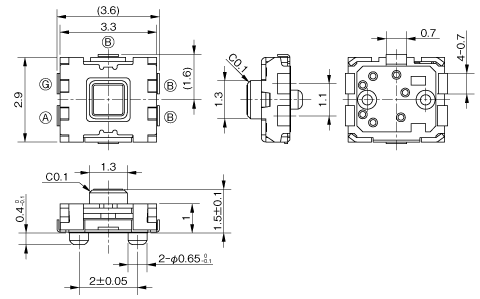

Square button
