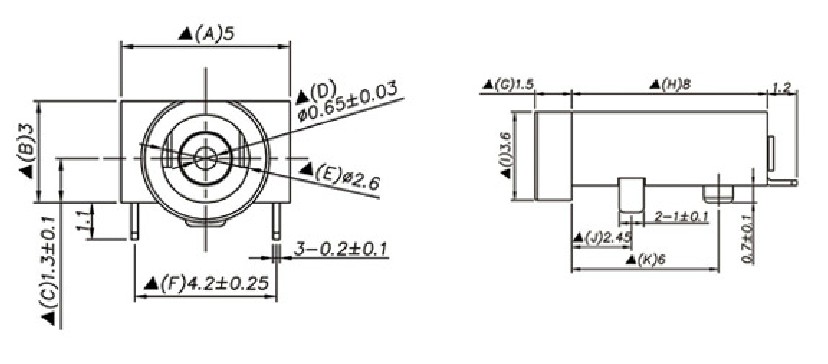

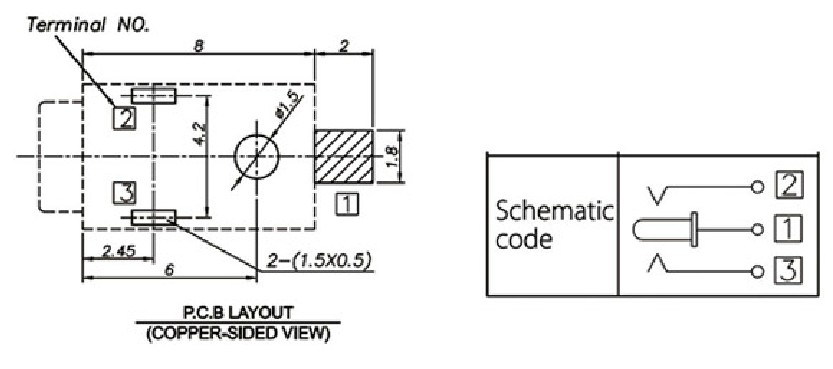

DC JACK HTJCA1460 SERIES
| Current rating | 12V 1A DC |
| Withstanding voltage | 500V AC |
| Insulation resistanece | ≧100MΩ(DC500V) |
| Contact resistanece | ≦30MΩ |
| Insertion & Extraction force | 3-30N |
| Life Test |
5,000 cycles |
| Note: | For further information, please contact:+886-3-4266335 |
