| Product: | Signal relay |
| Manufacturer: | Shinmei Electric |
| Features: | 1. Subminiature single pole relay. |
| 2. Variety. | |
| 3. Sealed construction. | |
| 4. Approved by UL / C-UL. |
Contact
| Specifications | |
| Packaging method: | Tube |
| Installation type: | DIP |
| Operating temp: | Standard type & Heavy duty type: -25℃ ~ +55℃(without being frozen) High sensitive type: -25℃ ~ +75℃(without being frozen) |
| Ampacity: | Standard type & Heavy duty type: 1A High sensitive type: 2A |
| Rated voltage: | Standard type & Heavy duty type: DC 30V High sensitive type: DC 30V |

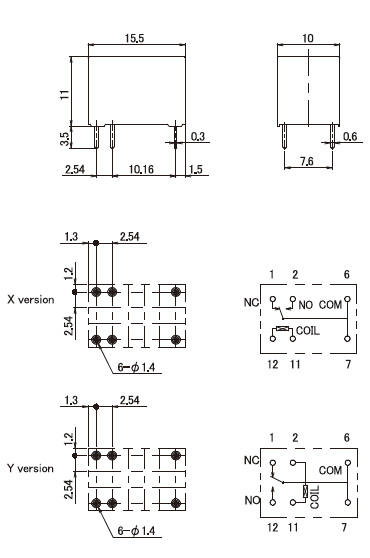

| Size (mm) (L*W*H): |
15.5X10X11 |
| note | For further information, please contact:+886-3-4266335 |
