| Product: | Stepping motors |
| Manufacturer: | Nidec Copal |
| Features: | 1. Rotational motion |
| 2. No.of poles: 12 | |
| 3. Excitation: 4/2 phase excitation (unipolar driving) | |
| 4. Steps: 24 | |
| 5. Step Angle: 15 º (Motor only) | |
| 6. RoHS Compliant |
Contact
| Specifications | |
| Packaging method: | Please follow the product spec |
| Installation type: | Please follow the product spec |
| Operating temp: | -10 °C ~ 50 °C |

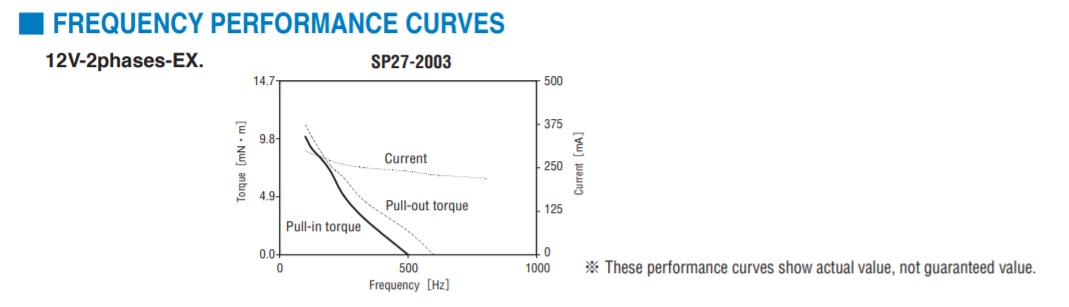

| Ampacity: | Please refer to the performance curve |
| Rated voltage: | Please refer to the performance curve |
| Size (mm): | ∅27 × 30 mm |
| note |
For further information, please contact:+886-3-4266335 |
