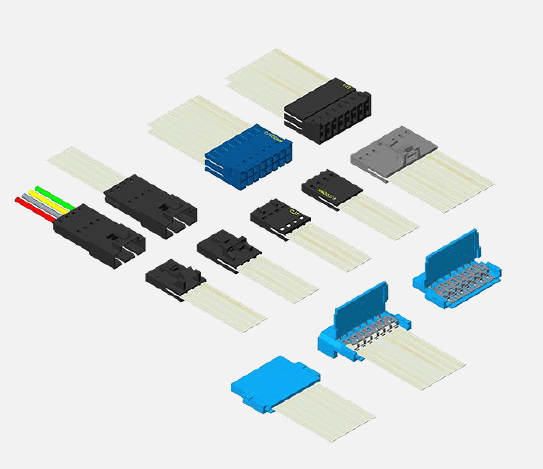

| Product: | Wire to Board Connector |
| Manufacturer: | CJT Connector |
| Features: | 1. 2~50Pin, 2x2~2x50Pin |
| 2. Enables quick and easy crimp and insulation displacement installation. | |
| 3. Supports FFC (Flexible Flat Cable) to wire connection method. | |
| 4. UL/cUL certified. | |
| 5. Applications include large format inkjet printers, 3D printers, home appliance touch switches, membrane switches, mechanical equipment, industrial control equipment, and medical devices. |
Contact
| Specification | |
| Pitch | 1.27mm(.050in) |
| Current rating | 1.5A AC,DC |
| Voltage rating | 30V AC,DC |
| Temperature range | -40℃ ~ +105℃ |
| Contact resistance |
20mΩMax. |
| Insulation resistance | 1000MΩMin. |
| Withstanding voltage |
500V AC/minute |
*Compliant with RoHS and REACH*
*To meet the HF/Halogen Free, need customization*
Wire to Board connectors (WTB Connectors) are a type of connector used for connecting wires or cables to a circuit board, enabling the transmission of current or signals from the wire into the board.
Horustech Electronics is an officially authorized distributor for CJT Connectors and various other connector manufacturers, offering a wide range of Wire to Board Connector (WTB Connector) products, with a variety of corresponding specifications available for pin to pin replacement of various connectors. If you have any connector purchasing needs, please feel free to contact us.
